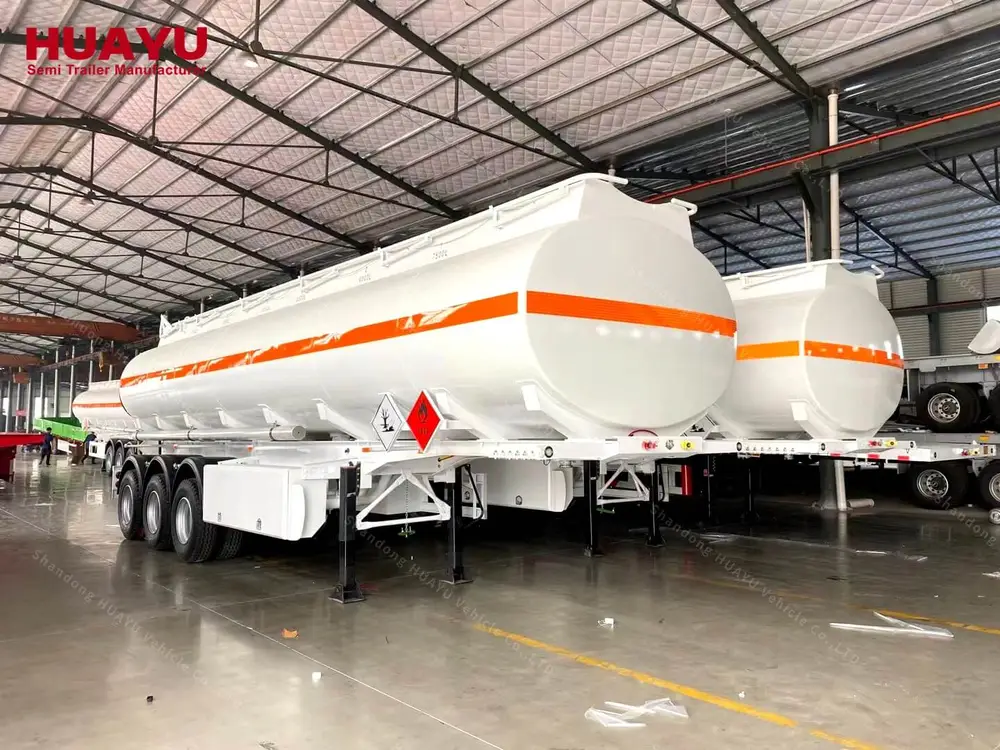

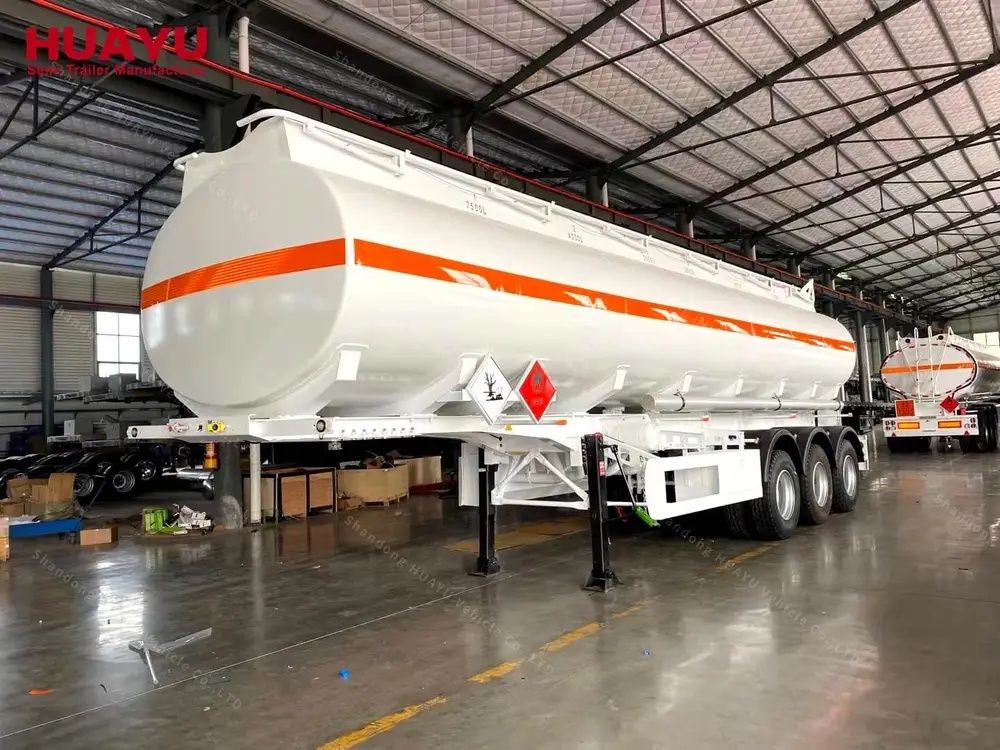

3 Axles 40000Liters Carbon Steel Oil Tanker Semi Trailer

3 Axle 40000 Liter Carbon Steel Oil Tanker Semi Trailer

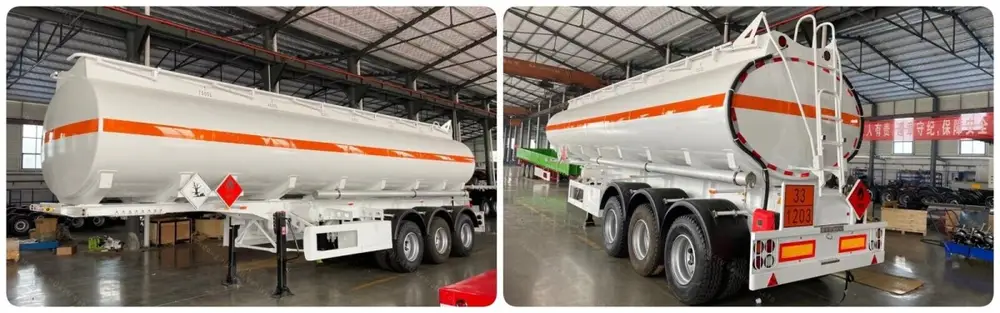

3 axle 40000 liter fuel oil tanker trailer

This 3 axle 40000 liter carbon steel oil tanker semi trailer is independently assembled by HUAYU Group. The tank body uses TIG welding technology, and welding quality reaches 99% of international standards. Every tank goes through double testing for both water tightness and air tightness before leaving the factory. A tanker that fails a pressure test gets repaired and re-tested — nothing ships without a clean result on both checks.

JOST brand king pin and landing gear connect the trailer to the tractor and support it at rest. All axle and pneumatic systems use BPW or FUWA brand components. The entire vehicle is field-tested under loaded conditions to verify structural integrity and road performance before delivery. The fuel tank can be customized in three materials: aluminum alloy, carbon steel, and stainless steel to match the operator's product requirements and budget. Contact us for custom material and compartment options.

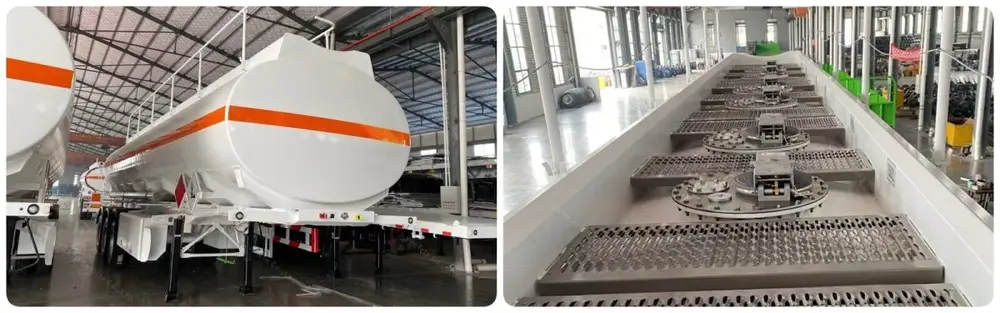

40000L carbon steel oil tanker detail

Specification of 40000L Carbon Steel Oil Tanker Trailer

The 40000L carbon steel oil tanker semi trailer has overall dimensions of 11,600mm x 2,500mm x 3,700mm. Tank body material is Q235 carbon steel at 5mm or 6mm thickness — a proven material for fuel tankers that balances cost with durability. End plates match at 5mm or 6mm Q235 carbon steel, and the manhole cover is also carbon steel.

Bottom valves are aluminum API pneumatic type, and discharging valves come in 3 or 4 inch diameter. Six compartments allow multi-product delivery on a single route. FUWA 13T axles (3 axles), JOST landing gear, and JOST 2.0 or 3.5 inch king pin are standard. Mechanical suspension and 12.00R24 tires complete the running gear.

HUAYU Semi Trailer Production Facility

HUAYU's factory covers 600,000 square meters with 10 semi-trailer production lines. Dedicated workshops handle low-plate semi trailers, powder tank semi trailers, and oil tank semi trailers separately. A team of 500 employees and 50 semi-trailer designers supports custom production to meet specific buyer requirements.

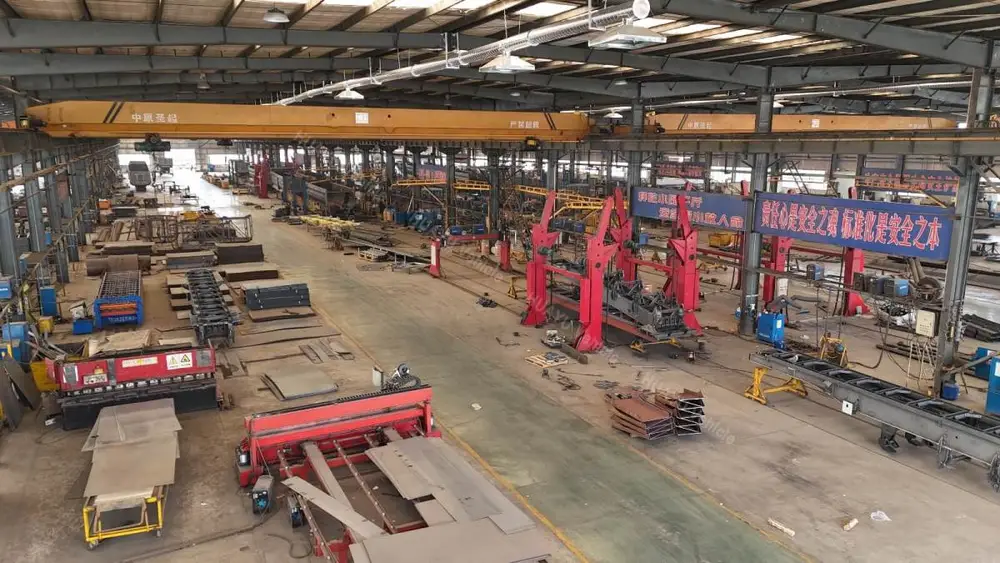

Trailer site production area

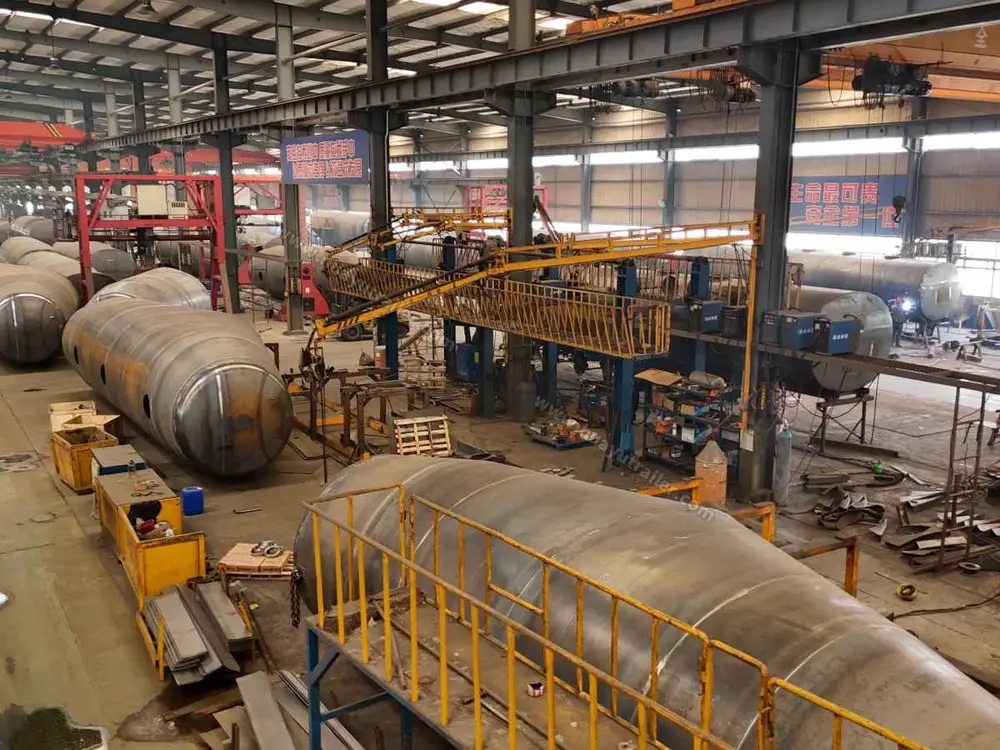

Tank trailer production area

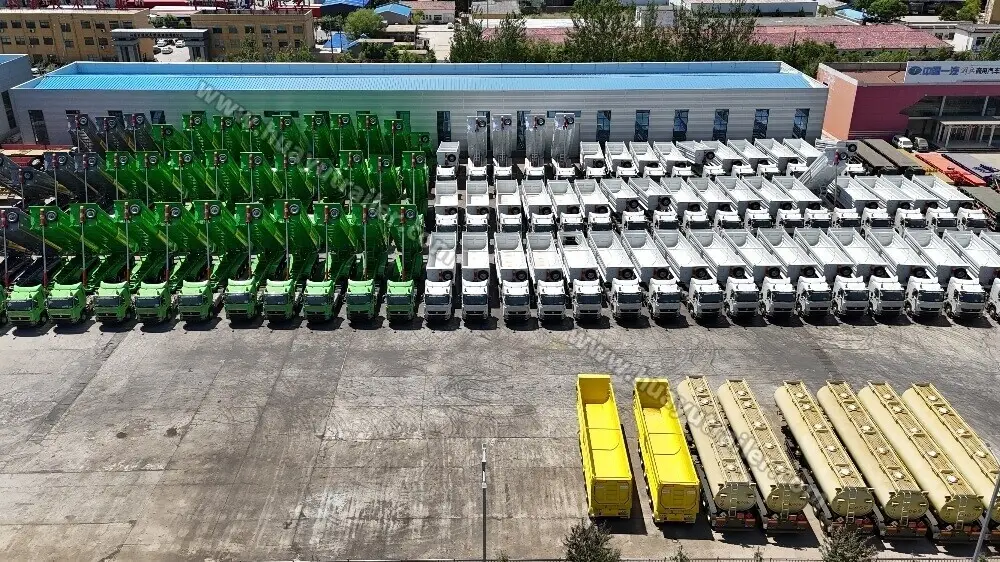

Packing and shipping area

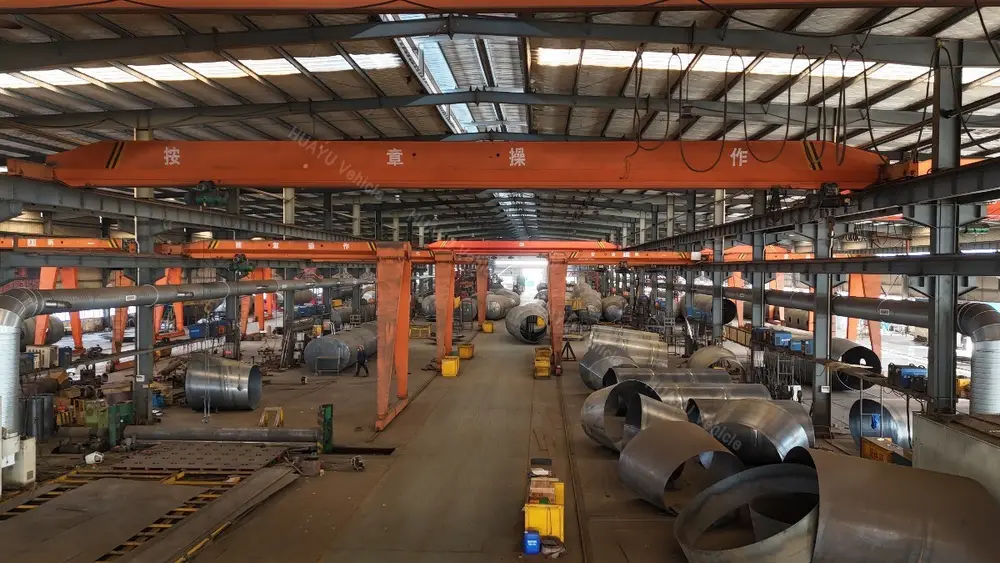

Aluminum alloy trailer production area
