3 Axles Keep Warm Stainless Steel Tanker Trailer
Fuel Tanker Trailer$30,000.00
Price is FOB Qingdao, China. Ask us for a CIF quote to your destination port — we reply within 24 hours.
Reference price for the standard configuration — final pricing varies with your chosen specs and options. Send an inquiry for a detailed quote.
3 axle keep-warm stainless steel tanker trailer for gasoline, diesel, crude oil, vegetable oil, and palm oil with insulated tank body.
Trade Terms
- MOQ
- 1 unit
- Payment
- T/T — 30% deposit, 70% balance before shipment; irrevocable L/C at sight for larger orders
- Delivery Time
- 7–25 working days after deposit, by model and quantity
- Loading Port
- Qingdao Port, China
- Incoterms
- FOB / CFR / CIF
- Shipping
- RORO / flat rack / 40HQ–45HC container / bulk vessel
- Warranty
- 10 years main beam; 1 year body & welds (from date of shipment)
- Certification
- ISO 9001:2015, ISO 14001, China 3C
HUAYU 3 Axle Keep-Warm Stainless Steel Tanker Trailer
The HUAYU 3 axle keep-warm stainless steel tanker trailer is built for transporting temperature-sensitive liquids including gasoline, diesel, crude oil, vegetable oil, and palm oil. The tank body uses aluminum alloy with a keep-warm function that maintains liquid temperature during transit. For palm oil and other products that thicken or solidify when they cool, temperature retention during long-distance transport prevents product loss and unloading delays. Learn about what liquids tank semitrailers can transport to see which products benefit from insulated tanks.
HUAYU independently designs and produces this tanker trailer in our dedicated production facility. The tank body is longitudinally welded, which strengthens the seams along the highest-stress direction and increases overall service life. A six-compartment layout (10,000L + 7,000L + 7,000L + 7,000L + 7,000L + 7,000L) supports multi-product delivery on a single trip.

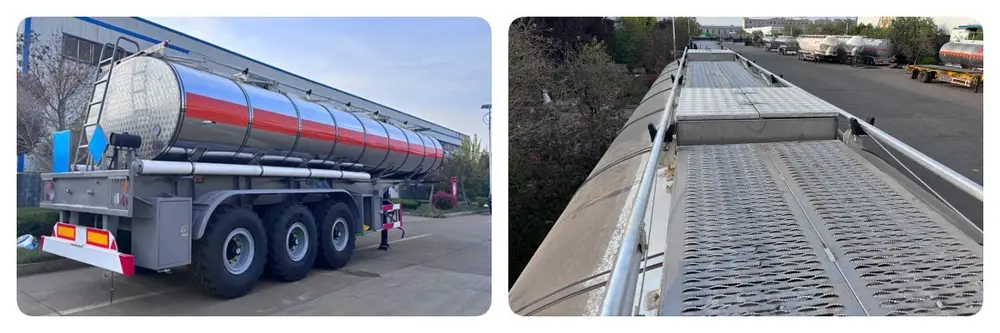

HUAYU 3 axle keep-warm stainless steel tanker trailer
Components and Build Quality
All key accessories come from world-renowned suppliers. BPW axles and JOST king pin and landing gear are standard — HUAYU maintains long-term cooperation with these companies. FUWA 28T linkage landing gear handles the full tank weight with margin. The 12.00 R24 tires are sized for the gross vehicle weight under full load conditions.
Non-wave plate thickness is 4mm, inlet covers are 500mm, and the discharge system uses a 4 FT model with 6 ports for efficient loading and unloading at fuel depots. These are not decorative specs — the plate thickness affects surge control inside the tank, and the 6-port discharge setup speeds up multi-compartment offloading.

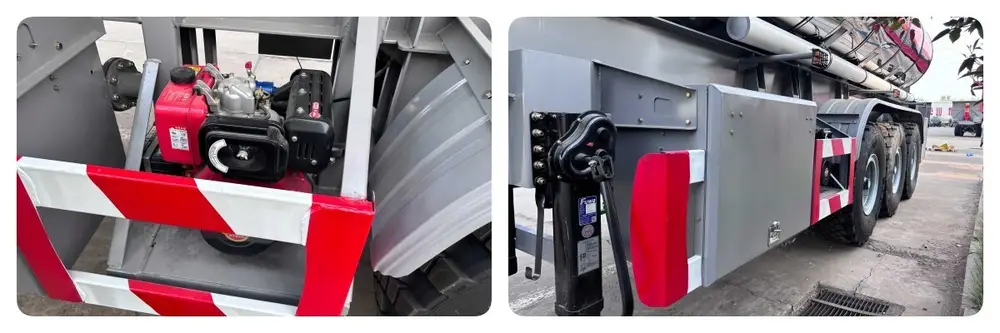

Fuel tank semi trailer with high-quality oil pump
Customization Options
HUAYU can customize and replace accessories on this keep-warm tanker trailer based on buyer requirements. Compartment counts, valve types, and discharge configurations can be adjusted to match the specific products being transported and the loading infrastructure at the buyer's depot. Contact us to specify your custom requirements. Steel and stainless steel tank body options are also available for operators who need different material properties.

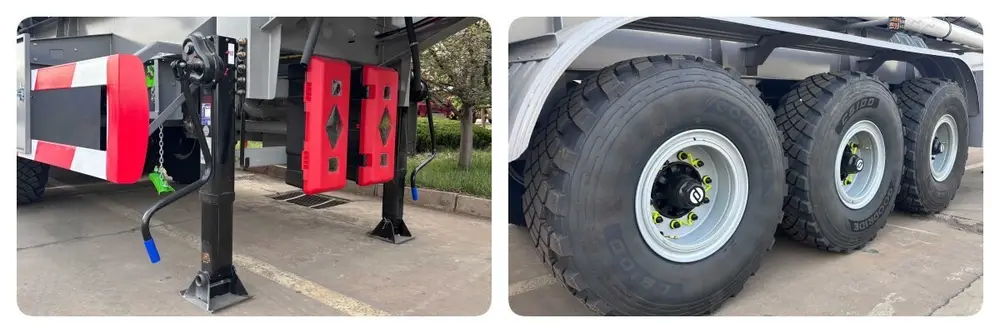

HUAYU fuel tank semi trailer with customizable accessory options
| Parameter | Value |
|---|---|
| Tank Body Material | Stainless steel |
| Load Capacity | 40 ton |
| Compartments | 10,000L + 7,000L + 7,000L + 7,000L + 7,000L + 7,000L |
| Non-Wave Plate Thickness | 4mm |
| Inlet Covers | 500mm |
| Discharge Port Model | 4 FT (6 ports) |
| Landing Gear | FUWA 28T Linkage |
| Tires | 12.00 R24 |
| Axles | BPW |
| King Pin | JOST |
| Special Feature | Keep-warm insulated tank body |
We haul edible oil and this stainless tanker has handled it well for about six months. The inner tank cleans easily between loads, heating keeps the oil fluid, and the insulation actually holds temperature overnight. Good fittings throughout.
2026-07-21
We carry vegetable oil from the processor to bottling plants around Bishkek. For nine months this insulated stainless tanker has done the job — food-grade inside, holds heat well, no leaks at the valves. It washes out fast between batches.
2026-05-05
We collect palm oil from village mills. Months in, this stainless tanker keeps the oil warm and seals well. Recommend it — just wish spare parts came faster.
2026-06-23
