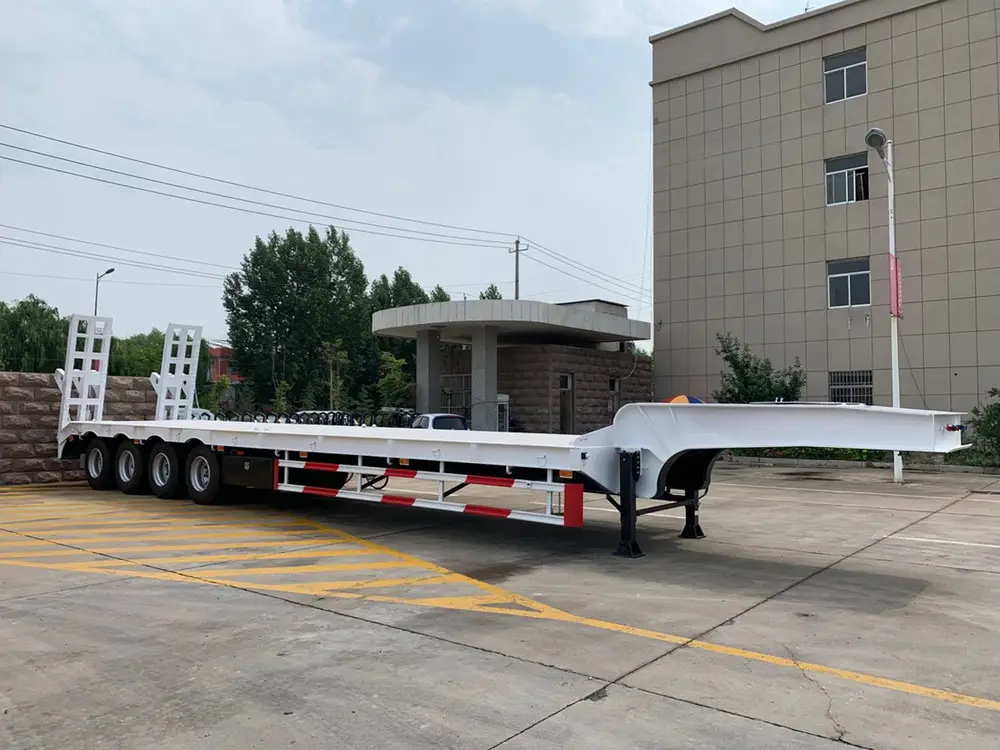

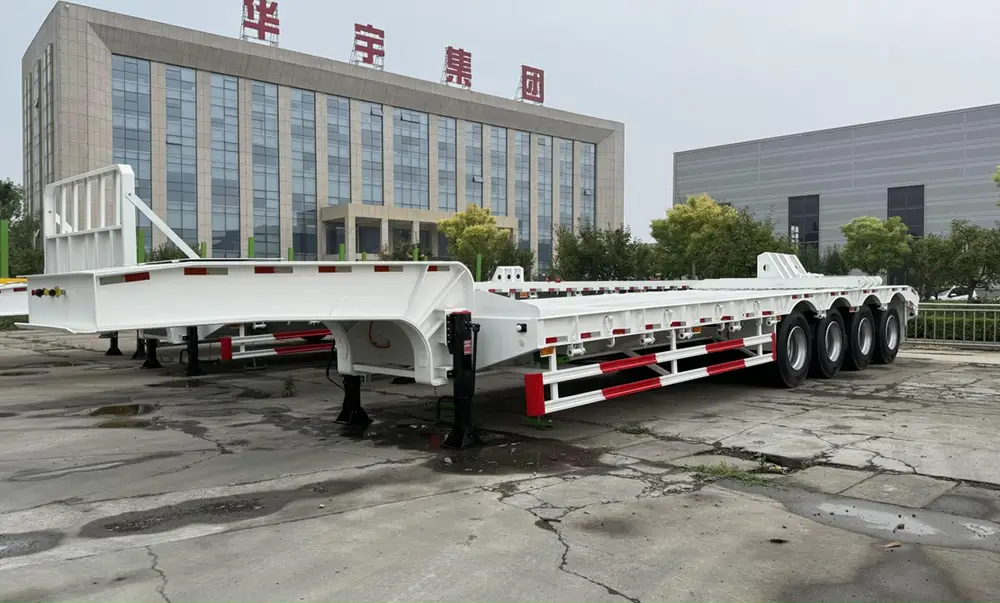

80 Ton Lowbed Semi Trailer

Lowbed semi-trailers exist because flatbed decks sit too high for the equipment that matters most to mining, construction, and oil-and-gas fleets. Once a hydraulic excavator passes the 40-ton mark or a loaded machine stands taller than about 3 meters, a flatbed becomes unstable on graded mining roads and over-height for highway bridge underpasses. The lowbed solution drops the deck closer to the ground, putting the cargo center of gravity where heavy equipment can travel safely between sites.

When 4 Axles Beat 3

Three-axle lowbeds top out around 60 tons of usable payload, fine for a single mid-class machine or a paired move at the mid-30-ton class. The four-axle 80-ton bracket starts to make sense the moment a fleet handles upper-class equipment, or any cargo where one extra axle of headroom prevents margin loss on the trailer. Four axles also spread the load across more contact patches, extending tire life on long unpaved hauls and lowering per-axle wear on the trailer itself.

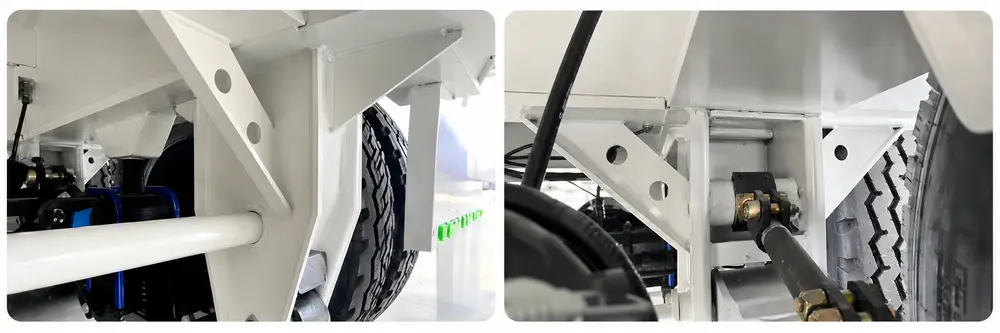

Leaf-spring suspension and axle hub close-ups

What Operators Check Before Buying

Three operating questions decide whether a lowbed actually fits a given fleet. First is the loading method: the rear-ramp configuration on this model supports drive-on loading for tracked and wheeled equipment without a crane on site. Second is route clearance: the deck-height profile keeps tall machines under most highway and mining-road bridge underpasses. Third is gooseneck and coupling: a detachable kingpin compatible with standard tractor saddles avoids any specialty fifth wheel requirement on the prime mover side.

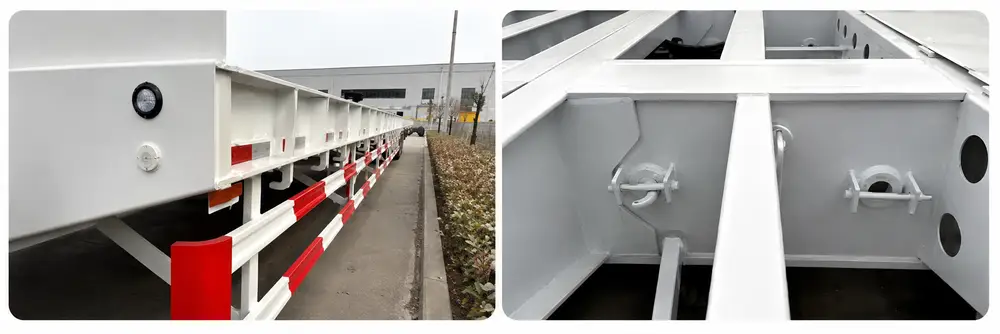

Side beam reflective strips and cargo tie-down points

Typical Applications

• Construction and infrastructure contractors moving excavators and wheel loaders between project sites
• Mining and quarry fleets relocating tracked equipment from yard to pit
• Equipment rental companies moving large machinery between rental customers

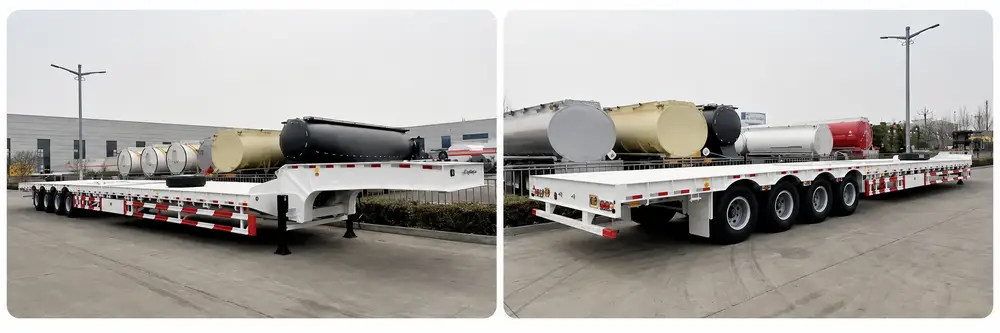

4-axle 80-ton lowbed semi-trailer for sale in Mongolia

For pricing on additional units, configuration changes, or delivery scheduling, reach us via the contact page or the WhatsApp button on every page. HUAYU sales replies within one working day on weekdays.
