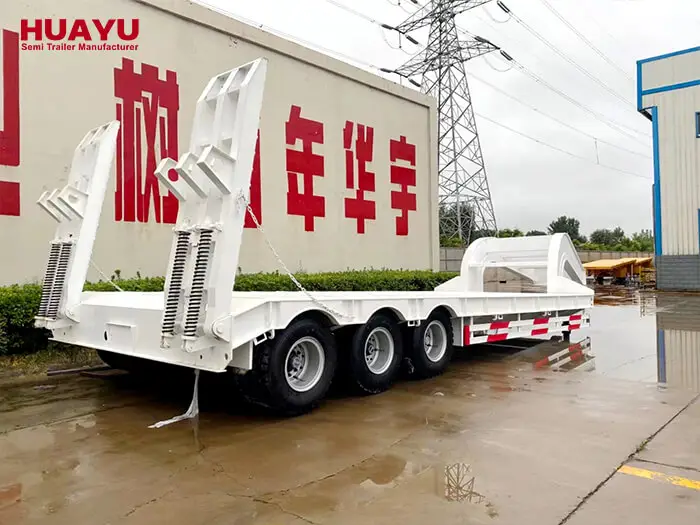

3 Axle 80 Ton Lowboy Semi Trailer

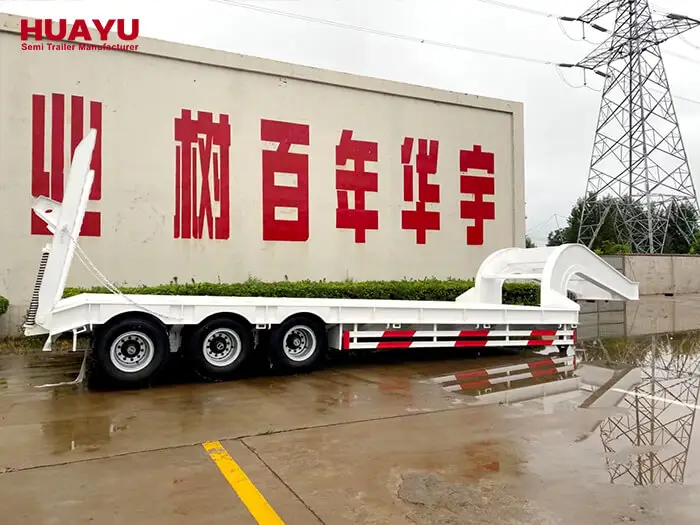

3 Axle Detachable Gooseneck Lowboy Semi Trailer

The gooseneck on a detachable lowboy semi trailer is built from four integrated systems: traction, force transfer, alignment adjustment, and locking. Each system has to work together to keep the gooseneck securely attached during transport and cleanly separated during loading. The locking methods between the removable gooseneck and the semi-trailer front end include traction saddle lock, latch lock, and CAM lock. Horizontal alignment uses either latch alignment or guide channel alignment, while vertical alignment can be mechanical, winch-driven, air pressure, or hydraulic. The load transfer between the detachable gooseneck and the semi-trailer front end works through hook, hole plate, or stirrup connections. Control is either manual or pneumatic.

That gooseneck system is what separates this 3 axle 80 ton lowboy semi trailer from fixed-neck designs. When the gooseneck detaches, heavy equipment drives directly onto the low deck from the front — no ramps needed, no height restrictions from a fixed neck. For operators hauling excavators, bulldozers, or mining machinery, front-loading cuts setup time and reduces the risk of equipment sliding on ramp inclines.

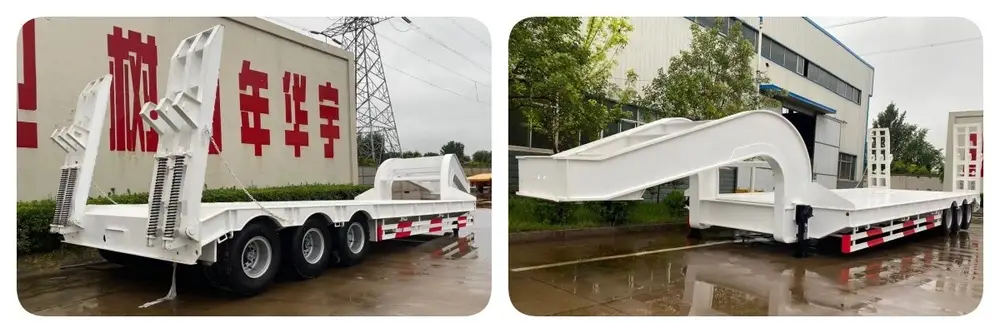

3 axle 80 ton lowboy semi trailer detail

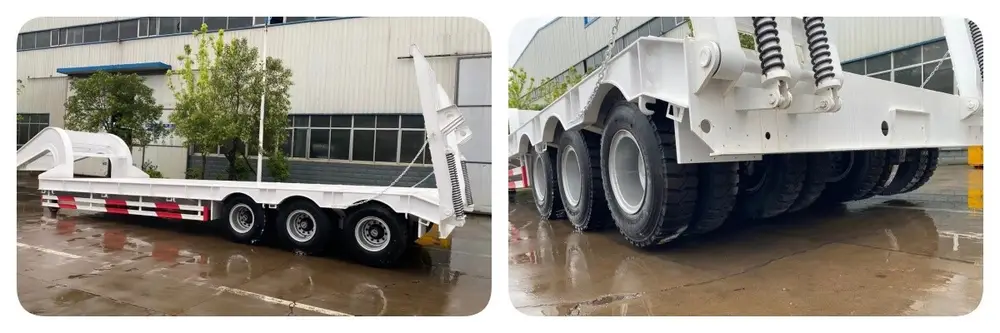

3 axle 80 ton lowboy semi trailer main beam

Low Center of Gravity for Heavy Machinery Transport

The main beam of this gooseneck lowboy semi trailer sits lower than the rear wheels, which puts the cargo deck well below the axle line. Heavy machinery carried on this deck has a low center of gravity that improves stability during turns, braking, and rough-road operation. For construction and mining operators transporting super-high and super-heavy equipment, this low deck height also means the loaded trailer can pass under bridges and overhead obstacles that standard-height trailers cannot clear.

The main beam is available in Q345 or T700 steel. T700 is a high-strength option with 700 MPa yield strength — it allows a lighter frame at the same load rating, which reduces tare weight and gives operators more payload per trip. With 24mm upper plate, 14mm middle plate, and 26mm lower plate in a 500mm beam profile, the structure handles the concentrated point loads that tracked machinery puts on the deck.
