3 Axles Side Curtain Semi Trailer

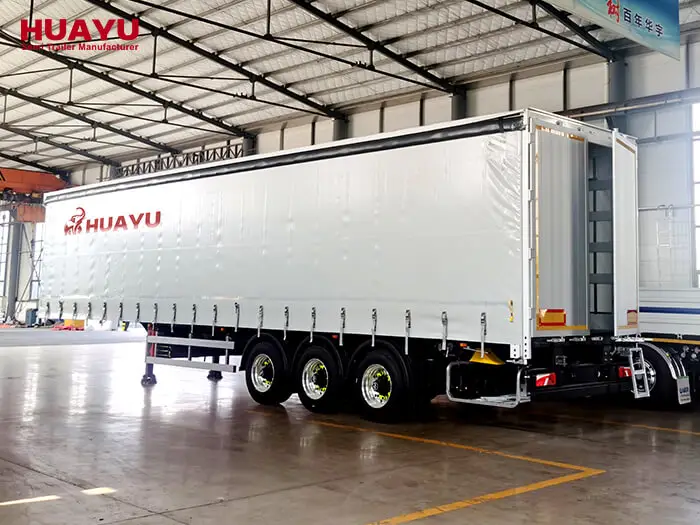

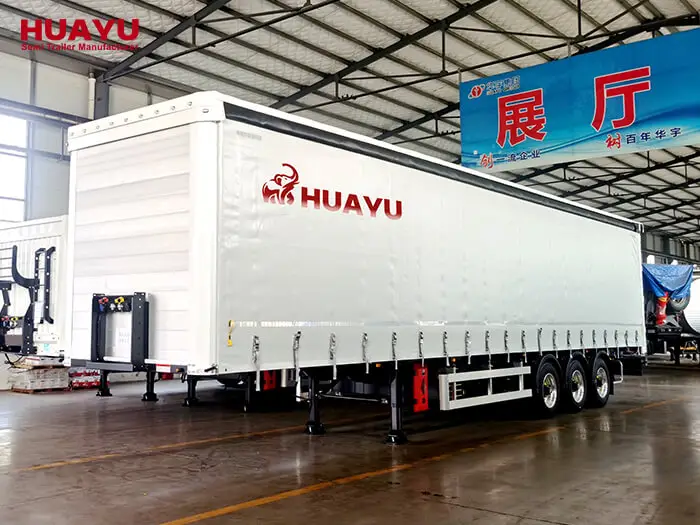

HUAYU 3 Axle Side Curtain Semi Trailer

The HUAYU 3 axle side curtain semi trailer is a popular choice in Africa, the Middle East, Russia, and South America. Also called a soft curtain trailer, this design looks similar to a standard semi trailer from the outside. The difference is in the wall material and internal structure. Both sides use flexible tarpaulins or other flexible materials mounted on guide rails above with locking devices below. Side curtains slide into any position for loading access, and both sides open fully. The top can use a cross bar and tarpaulin configuration that also opens and closes completely.

This side curtain semi trailer is rainproof and dustproof, which protects cargo without requiring a rigid box structure. The 40-tonne load capacity handles pallet cargo, bulk goods, food, and beverages — the typical freight mix for distribution operators in these markets.

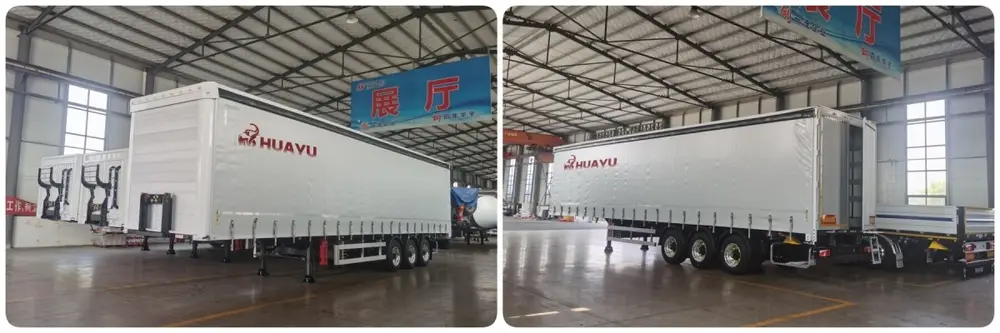

HUAYU 3 axle side curtain semi trailer

Customizable Curtain Printing

The flat curtain sides accept high-quality printed graphics, which gives transport operators a mobile advertising surface. Side curtain trailers in Russia, Central Asia, Europe, and the United States already use printed curtains as rolling brand displays on highways. The flat surface does not collect dirt easily, and cleaning is simple — so the branding stays visible and professional between washes. For fleet operators, that free advertising exposure on every delivery run has real commercial value.

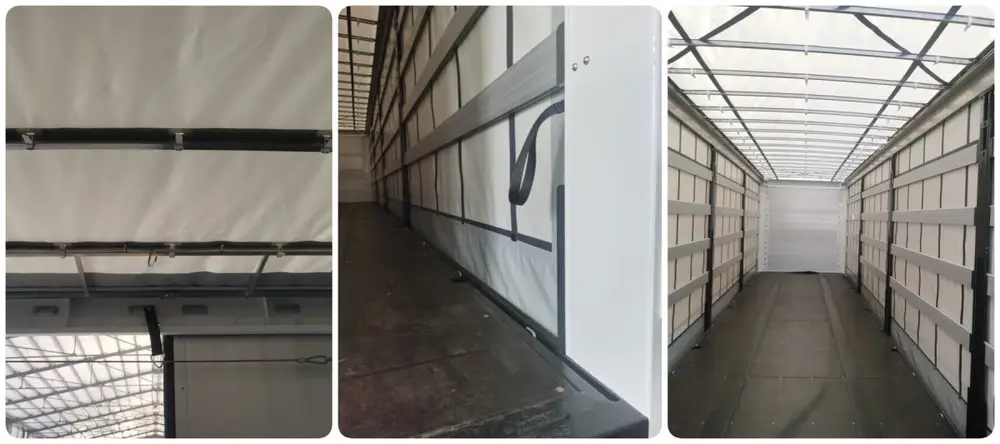

Side curtain semi trailer with customizable printed curtain pattern

Weight Advantage Over Rigid Trailers

The side curtain trailer uses canopy cloth in place of rigid box materials. Combined with aluminum alloy internal framing and air suspension technology, the total weight is 3 to 4 tonnes lighter than a comparable grid or van trailer. That weight saving goes straight to payload. On routes with strict gross vehicle weight limits, those extra 3-4 tonnes of cargo per trip make a real difference in revenue per load. Contact us for custom curtain specifications and pricing.

Loading Efficiency and Cargo Distribution

Because the curtains on both the top and sides of this 3 axle side curtain semi trailer open fully, multiple forklifts can operate at the same time from different sides. That simultaneous loading capability speeds up turnaround at warehouses and distribution centers. Standard palletized cargo fits efficiently inside the open space, and the flat interior maximizes usable volume without the post obstructions that rigid-wall trailers have.

Palletized loading also allows more even cargo distribution across the trailer length. Even load distribution spreads weight to each axle proportionally, which reduces chassis wear and keeps tire wear consistent. Uneven loading concentrates stress on specific axle positions, which accelerates component fatigue. A regular maintenance schedule helps detect wear early and keep the trailer in peak condition.

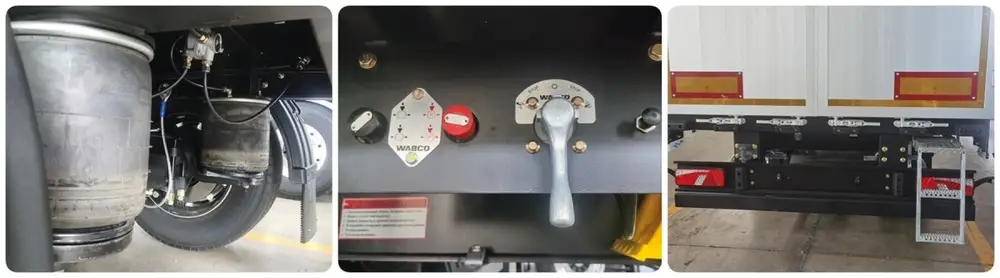

Side curtain semi trailer loading
