3 Axle 45 CBM Mining Tipper Semi Trailer

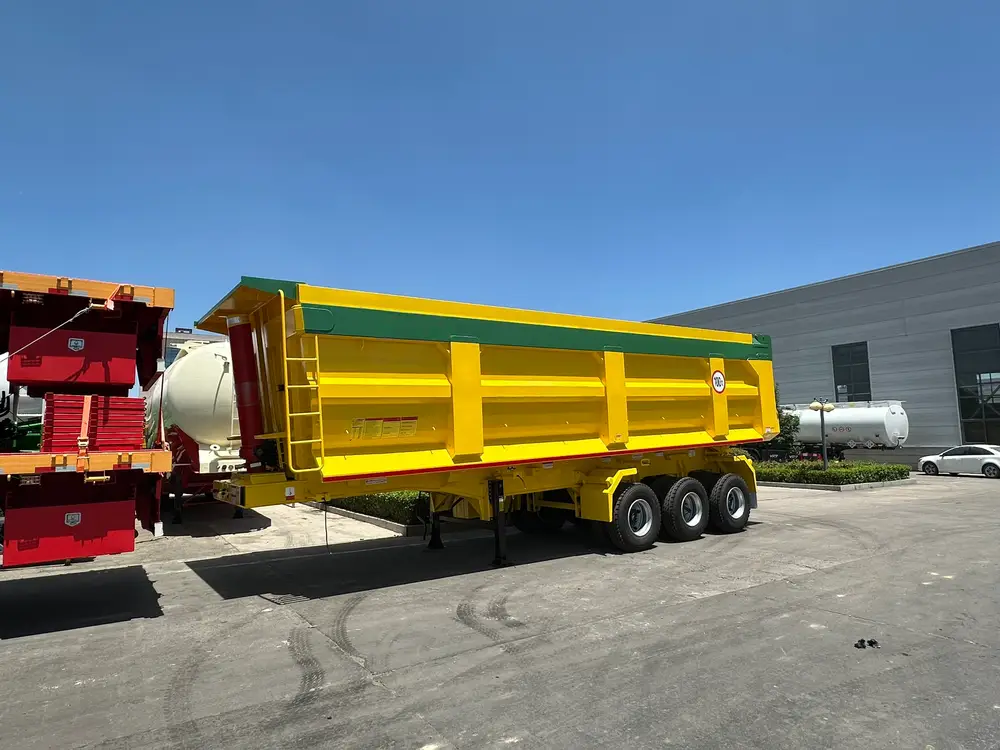

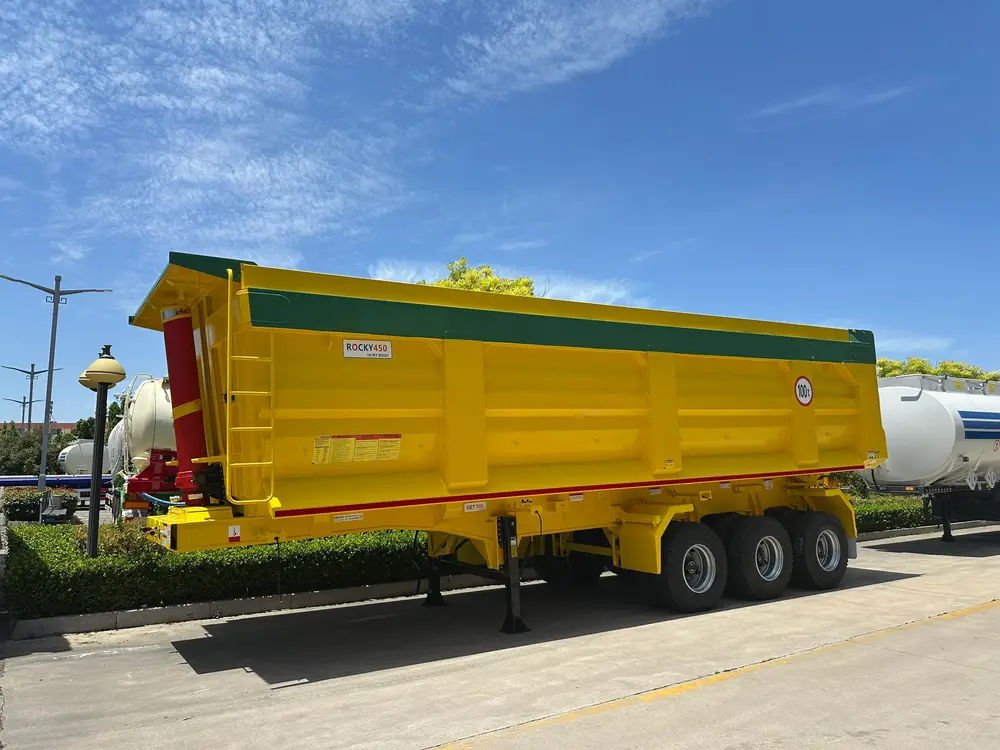

The 3 Axle 45 CBM Mining Tipper Semi Trailer is HUAYU's rear-tipping dump trailer built for mine-site duty: a 45 cbm rectangular body, a 100 ton site rating, and 12.00R20 deep-block mining tires on 10-stud steel wheels. Two markings on the yellow unit photographed here say exactly what it is: a round 100 t roundel over the axle group and a ROCKY450 plate on the body side. Under the floor sit three 13-ton FUWA axles on a 10-leaf mechanical stack, and a HYVA front-mount telescopic ram lifts the body to roughly 50 degrees. This is a pit-to-crusher and quarry-to-plant trailer, not a highway line-haul unit.

Specced for the Mine Site, Not the Motorway

Read the decals on the body and you can tell where this trailer is meant to work. The rear wall carries the factory site-speed sticker: 40 km/h loaded, 25 km/h off-road. Those are mine-site limits, the speeds a loaded tipper actually sustains on bench roads and pit ramps. Rear-end hardware follows the same logic. The LED tail clusters sit behind mesh guards because flying rock from the shovel does not respect plastic lenses. White mud flaps and full-length conspicuity tape keep the trailer visible in pit dust at dawn shift change.

Landing gear tells the same story. Each JOST 28T leg ends in a wide sand shoe, so the trailer can stand uncoupled on a soft bench without the feet punching through. None of these details costs much on the production line. All of them cost a lot to retrofit after delivery.

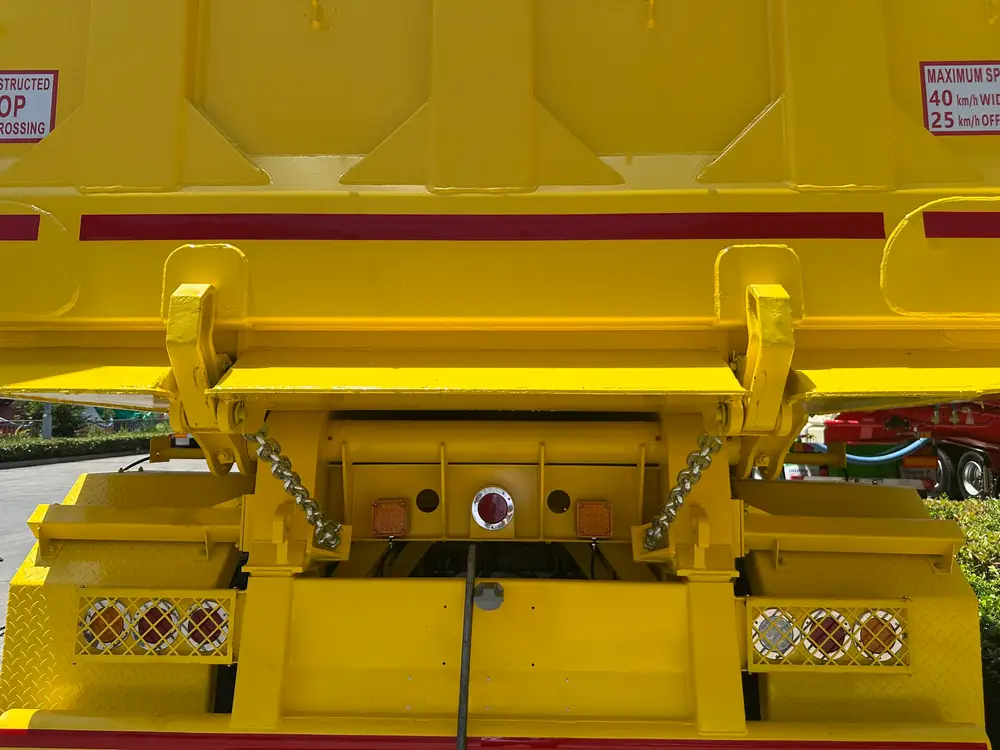

Dual chain-latched tailgate levers and the factory 40 km/h site-speed decal on the yellow tipper body.

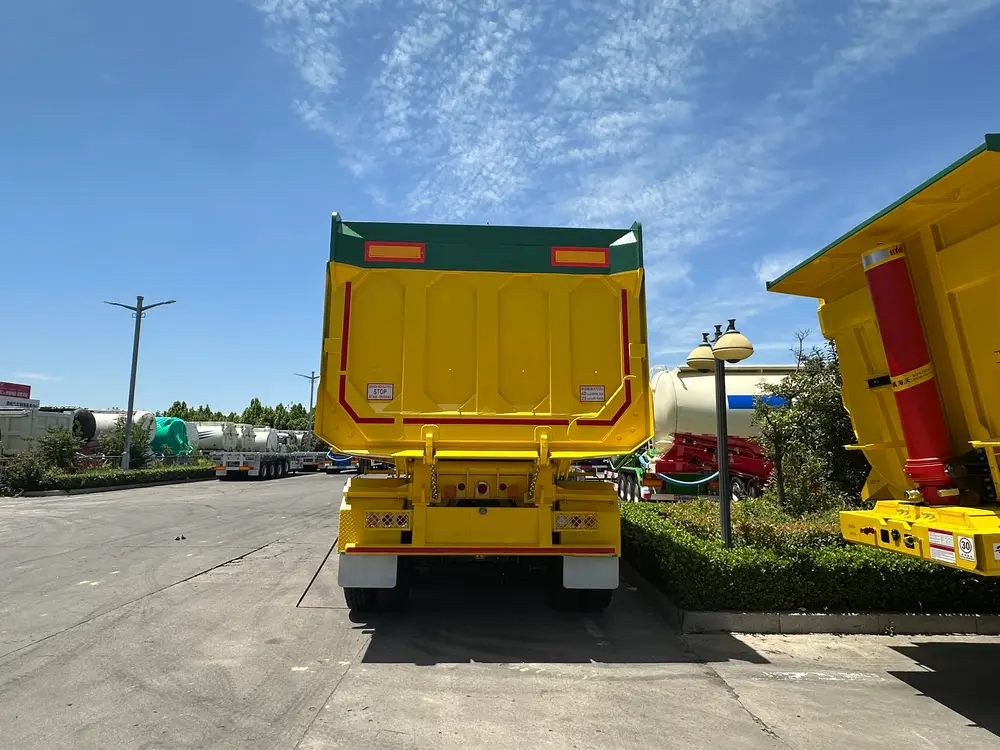

Rear view of the 45 CBM mining tipper showing caged tail lamps, conspicuity tape, and white mud flaps.

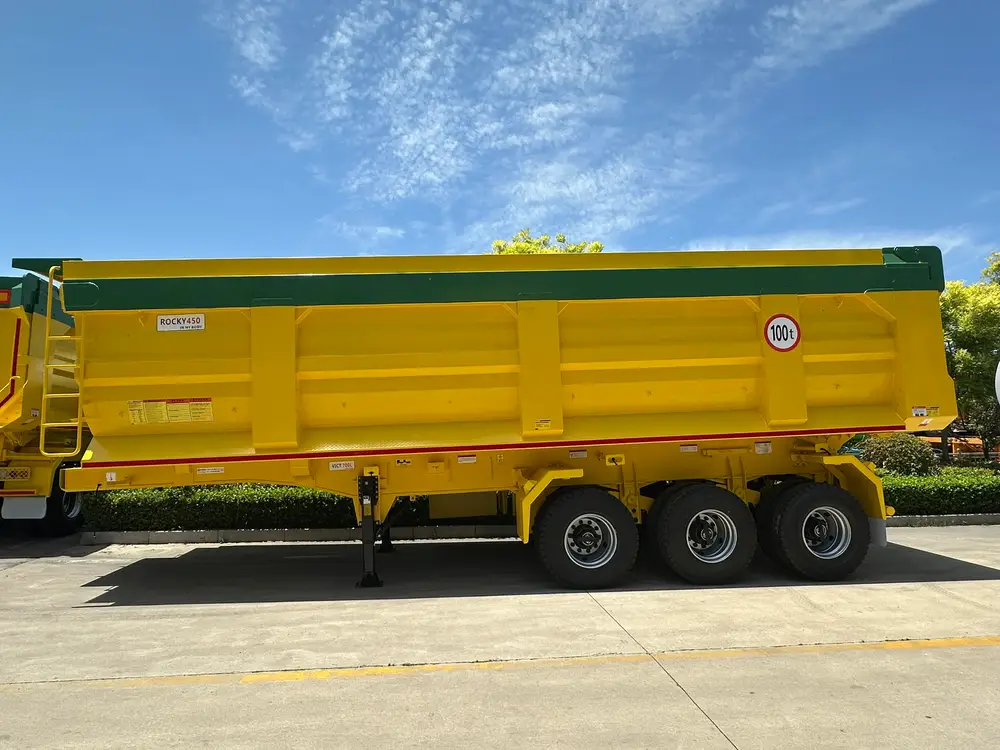

A ROCKY 450 Body for Abrasive Loads

The body side wears a ROCKY450 plate, and it is not decoration: the floor and side walls are pressed from Baosteel ROCKY 450 wear-resistant steel, 8mm on the floor and 6mm on the sides. On abrasive loads — blasted granite, iron ore, river gravel with sharp fines — wear plate holds its thickness where ordinary mild-steel bodies scour thin along the load lines. The rectangular profile with three pressed horizontal ribs keeps the walls flat under heaped loads, and the green top rail is a reinforced section, not a trim strip.

For the full material comparison (ROCKY 450 hardness numbers, how it stacks up against Hardox 450, and when a U-shape body beats a rectangular one), see the 3 axle U-shape rock body page, which covers the wear-plate question in depth.

Tipping Geometry: 50 Degrees From a Front-Mount Ram

A tipper that cannot clear its load in one lift wastes the cycle it was bought to save. This body tips to approximately 50 degrees, past the angle of repose for damp sand, sticky clay overburden, and crushed rock with fines, so the load slides instead of hanging up on the floor. The HYVA front-mount telescopic cylinder does the work: multi-stage, seated ahead of the body, pushing through a geometry that keeps the lift force aligned with the chassis rather than out over the side. Front-mounting also leaves the whole underfloor free of hoist hardware, which is why the underside of this trailer is just the bolted kingpin plate, the longitudinal members, and the landing gear.

With a healthy tractor PTO and hydraulic flow, a full raise-hold-lower cycle runs well under a minute. What the ram pushes against matters as much as the ram itself: tip loads travel down through the subframe into the kingpin and the three-axle group, and the 500mm Q345B I-section main beam is sized for that load path, not just for static payload.

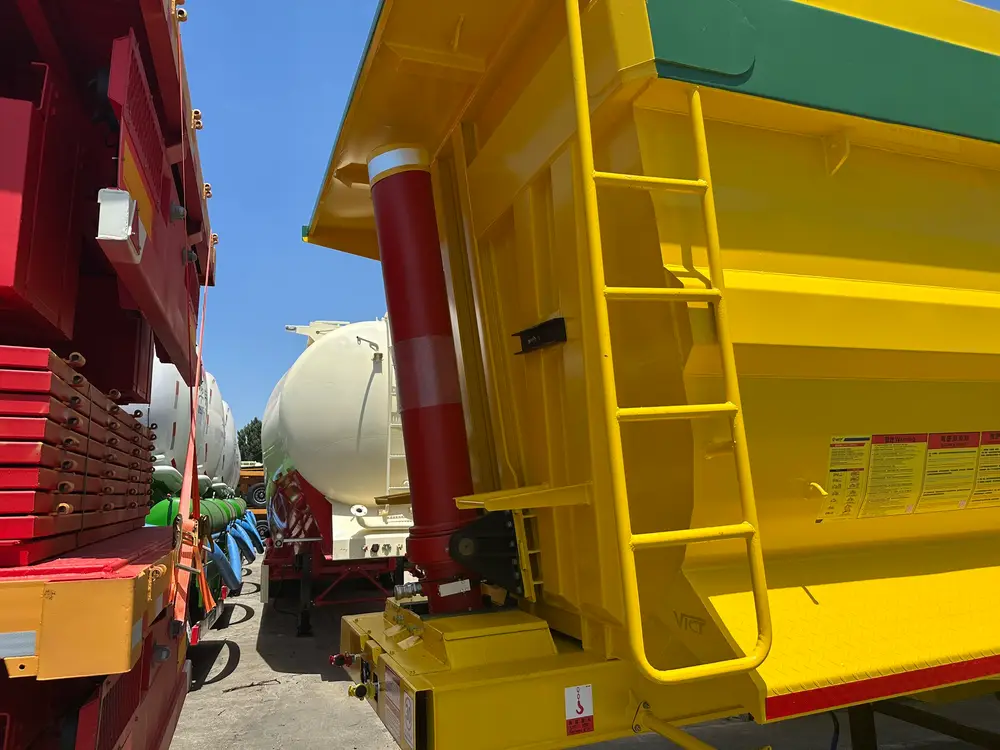

The red HYVA front-mount telescopic cylinder and access ladder on the front wall of the yellow tipper body.

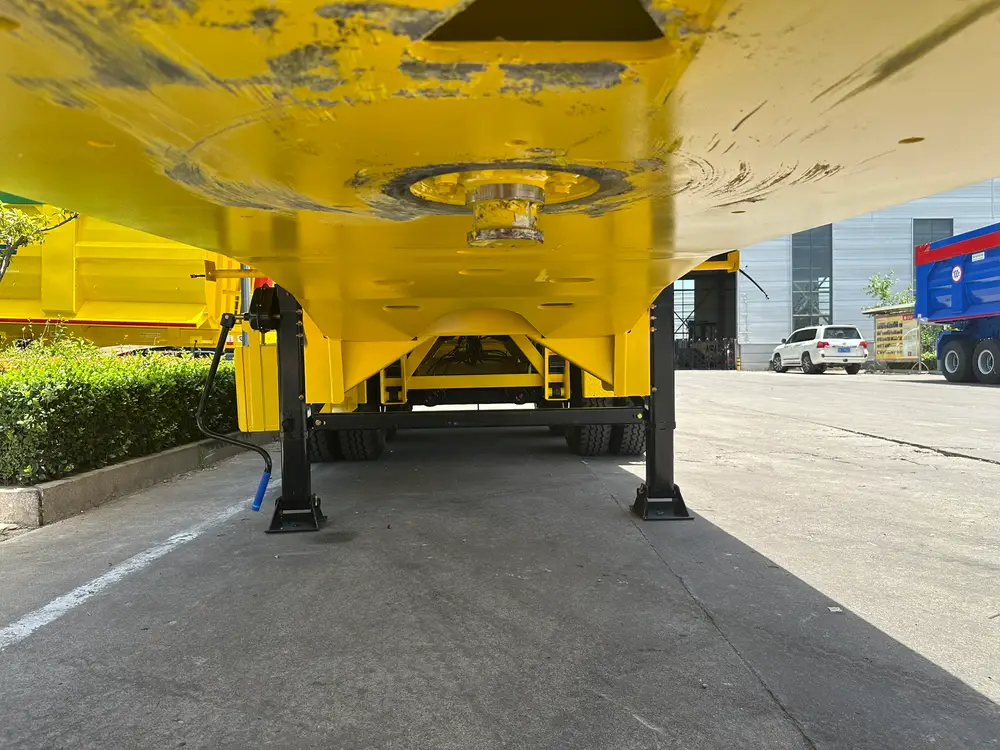

The bolted kingpin plate and body underfloor, with the two-speed landing gear dropped on the factory yard.

12.00R20 Mining Tires on a Three-Axle Stack

The running gear is where the mining spec is easiest to verify. The tires are 12.00R20 with a deep-block mining tread, mounted on 8.5-20 ten-stud steel disc wheels. Twelve tires are fitted, and two spares ride on the trailer — one carrier sits under the chassis mid-frame, reachable without unloading the body. Deep-block tread is a deliberate choice for pit work: it bites on loose bench surfaces and sheds stones that would drill into a highway rib pattern.

Behind the wheels: three FUWA 13-ton axles (16-ton optional, BPW available on request), T30/30 spring brake chambers, and a dual-line air system with WABCO ABS. The suspension is a heavy mechanical multi-leaf stack, 90mm wide, 16mm thick, 10 layers per side. For the reasoning on why a 100 ton unit rides on leaf springs instead of air suspension, the 100 ton heavy duty rear dump page lays out that argument in full.

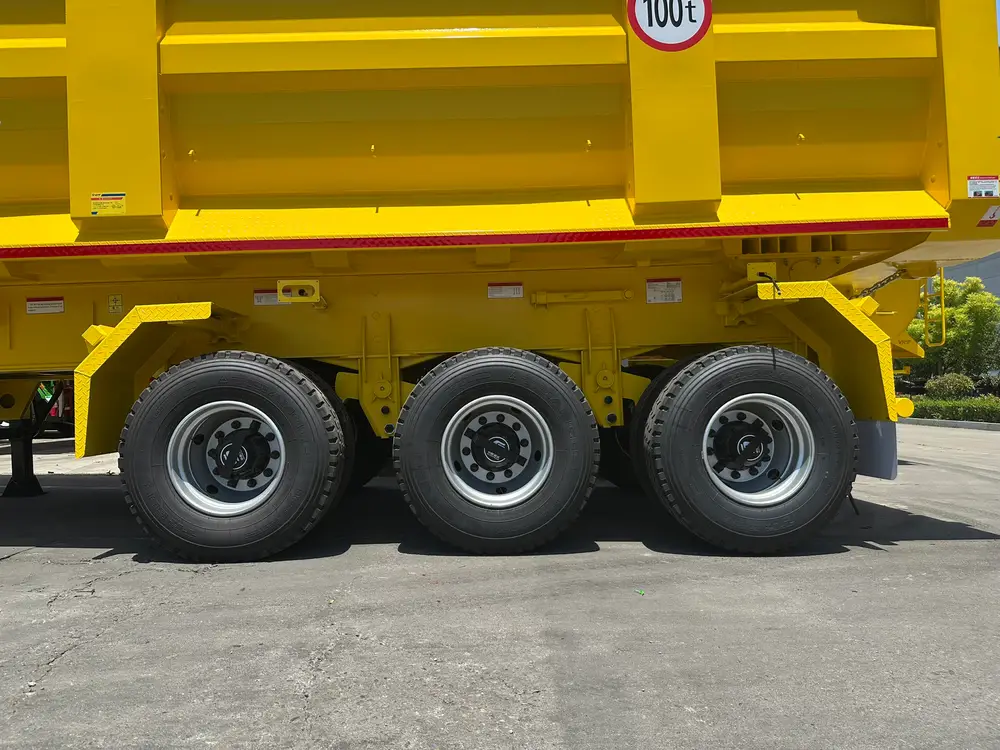

Three 12.00R20 deep-block mining tires on 10-stud steel rims under the 100 t badge of the tipper body.

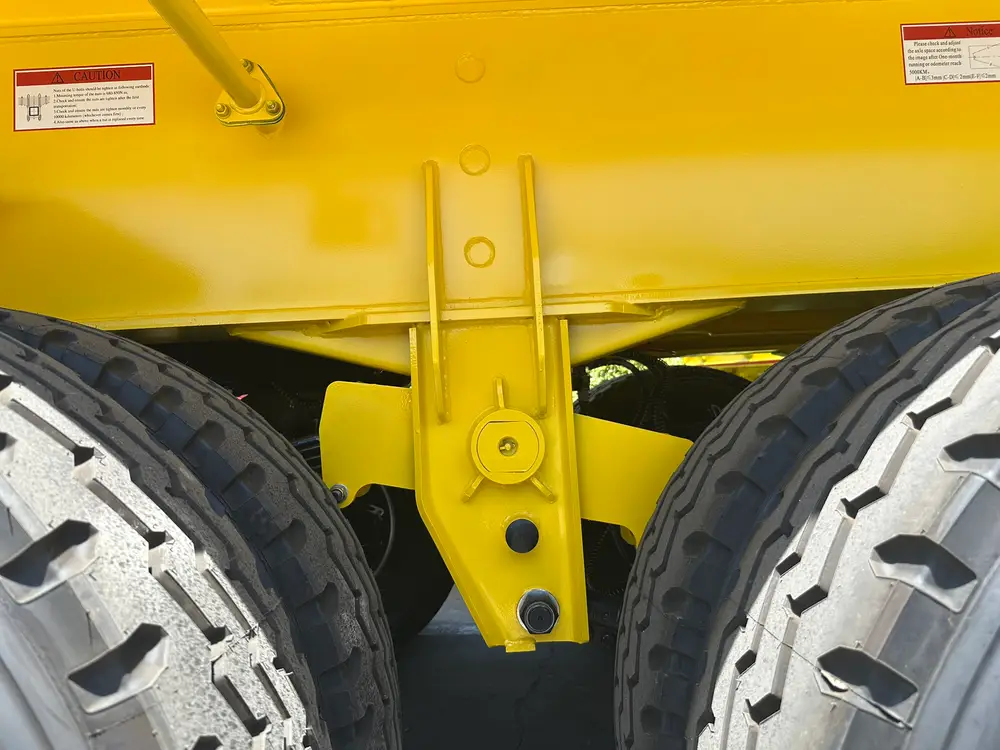

Heavy mechanical suspension equalizer and hanger bracket between two mining-tread tires on the tipper trailer.

The Rest of the Spec Stack

• Kingpin: 2 inch (50#) JOST as standard, 3.5 inch (90#) optional, on a bolted plate
• Landing gear: JOST 28T two-speed with sand shoes for soft ground
• Brakes: dual-line air, WABCO ABS, T30/30 spring chambers
• Electrical: 24V system, LED tail clusters in mesh cages, caged side markers, 7-pin socket
• Main beam: Q345B high-tensile steel, 500mm heavy I-section
• Paint: 2-part epoxy primer plus polyurethane topcoat, yellow with green top rail as shown
• Accessories: lockable side tool box, under-slung spare wheel carrier, front-wall access ladder

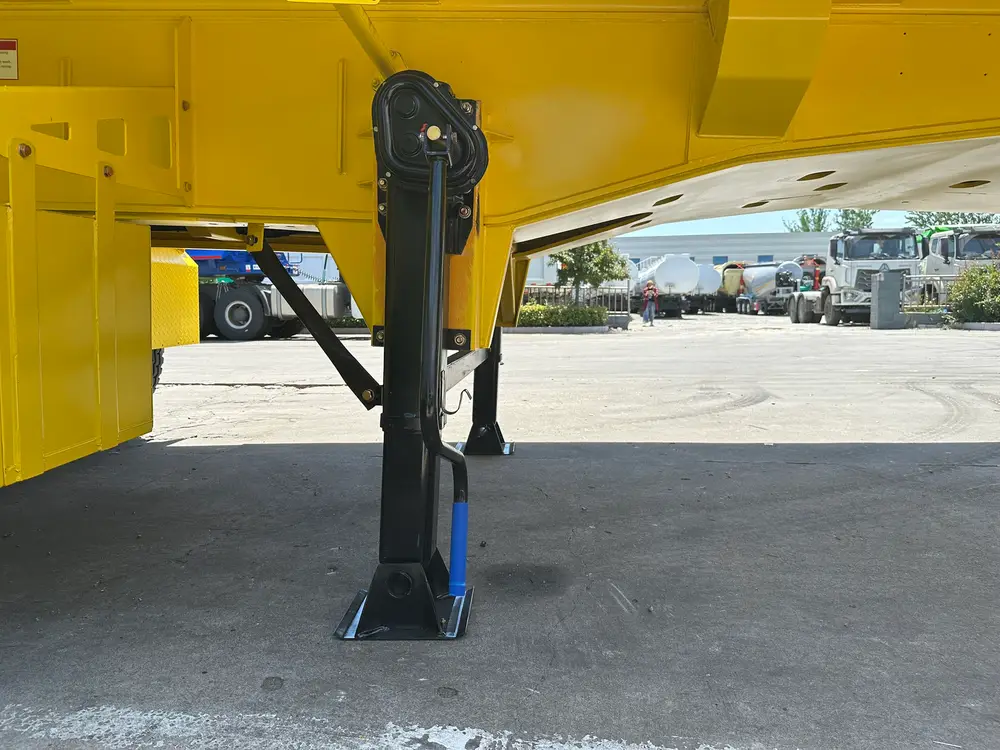

The two-speed landing gear leg with wide sand shoe deployed under the front of the yellow tipper body.

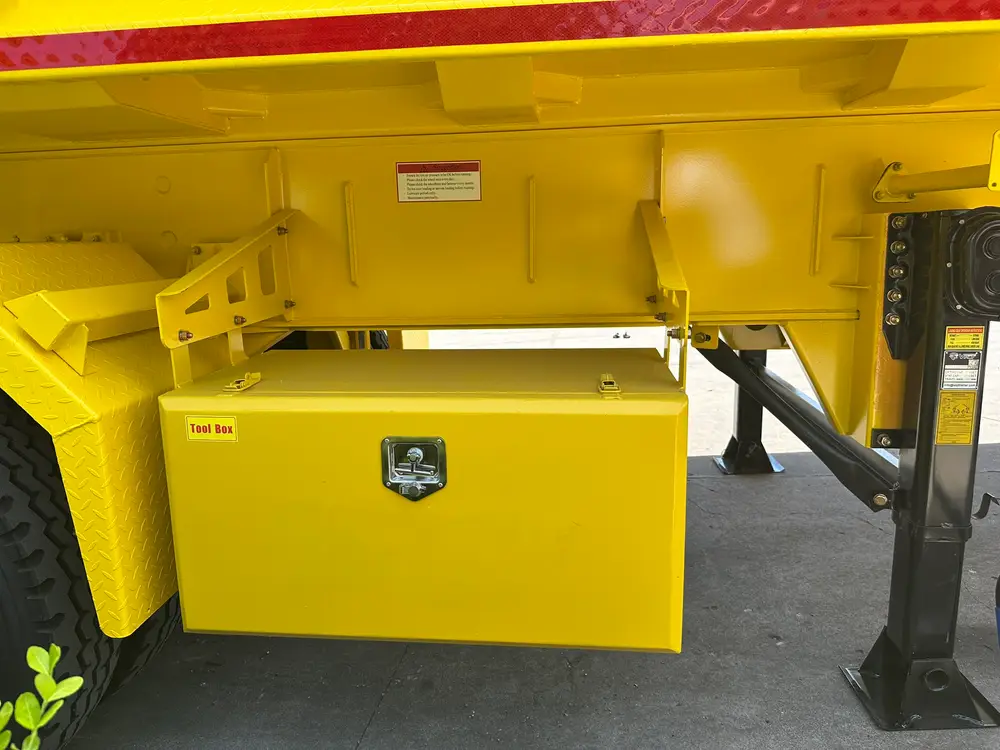

A lockable yellow tool box mounted on the chassis side between the landing gear and the axle group.

Who Buys the Mining-Spec Rear Tipper

• Open-pit mine and quarry operators moving ore, blasted rock, or overburden between bench and crusher, where the 40/25 km/h site-speed rating applies and abrasion kills mild-steel bodies
• Aggregate and river-sand contractors in East and West Africa running pit-to-plant cycles of 40-45 cbm per trip on mixed laterite and paved roads
• Infrastructure subcontractors in the Gulf and Central Asia hauling rock fill and gravel for highway, dam, and port projects with unpaved site access
• Fleet owners replacing highway-spec tippers that wore out early on dense, sharp-edged loads
