3 Axle 25m Extendable Flatbed Trailer
Flatbed Trailer$25,000.00
HUAYU 3 axle 25m extendable flatbed trailer for steel pipes, rails, and other long cargo with adjustable deck length up to 24 meters.

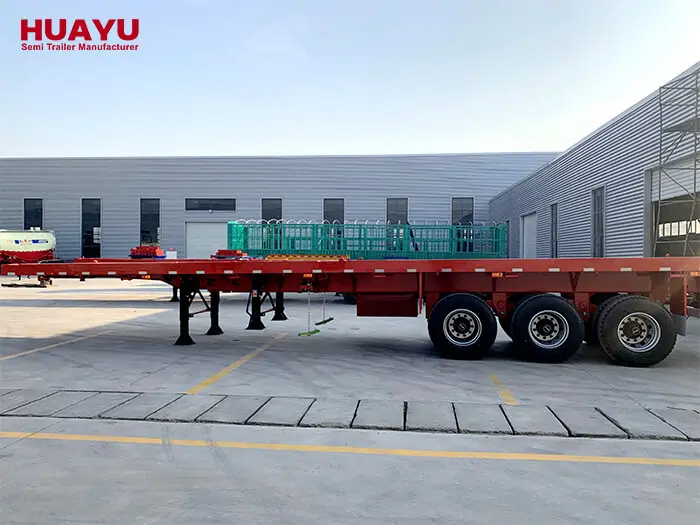

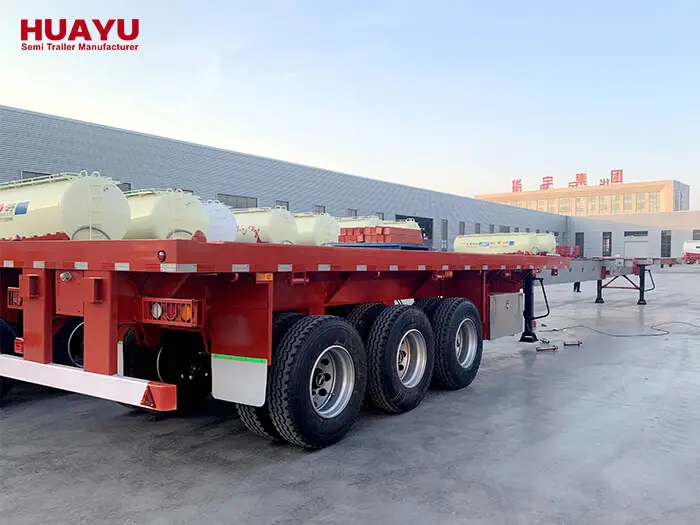

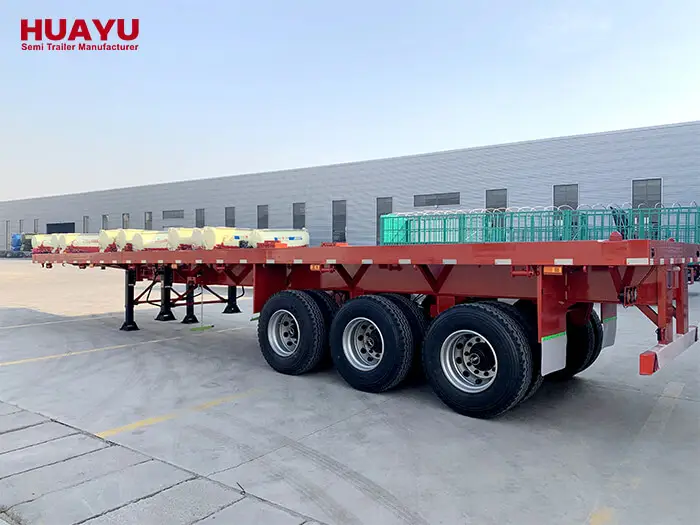

HUAYU 3 Axle 25m Extendable Flatbed Trailer
The HUAYU extendable flatbed trailer is built for transporting ultra-long goods like rails, pipelines, structural steel, and large machinery. Because the deck length adjusts from 12.5m to 24m, operators can match the trailer to the cargo length on each job. No overhang problems. No need for escort vehicles on loads that fit within the extended deck.
The main beams use T700 steel — a high-strength grade that keeps the frame rigid even at full extension under load. When a standard-length flatbed hits a pothole at speed with a 60-ton load, all that stress concentrates at the extension joints. T700 steel resists fatigue cracking at those joints better than lower-grade alternatives, which is why HUAYU uses it on extendable models.

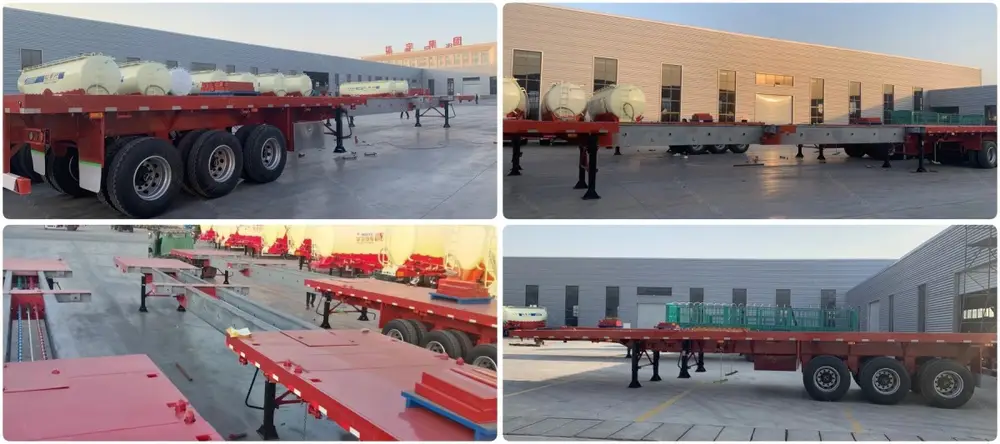

3 axle 25m extendable flatbed trailer detail
Load ratings go from 30T up to 60T depending on the axle configuration. If you need help selecting the right configuration, see our guide on how to choose a semi trailer. Axle options include 13T, 16T, and 20T from BPW or FUWA, and the WABCO brake valve with big chamber gives strong stopping power at full payload. Three suspension types are available: bogie, spring, and air. Bogie suspension is the most common choice for long-cargo routes over rough roads because it allows more axle articulation than rigid spring setups. For custom configurations, contact us with your cargo details.

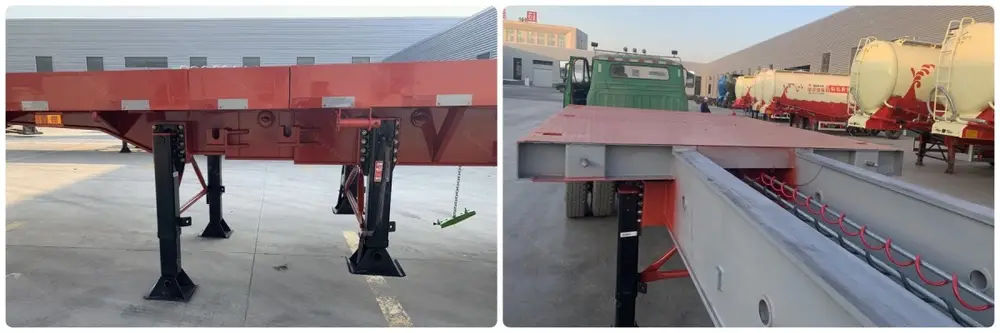

HUAYU extendable flatbed trailer suspension and axle detail
| Parameter | Value |
|---|---|
| Dimension | 12.5m to 24m x 2500mm x 1550mm |
| Loading | 30T, 40T, 45T, 50T, 60T |
| Tire | 11.00R20, 12.00R20, 12R22.5, 385/65R22.5 (Triangle / Hankook / Bridgestone) |
| Material | Main beams T700 Steel |
| Axles | 13T / 16T / 20T BPW or FUWA brand |
| King Pin | 2 inch or 3.5 inch JOST brand |
| Brake System | WABCO valve with big chamber |
| Landing Gear | JOST brand two-speed, manual, heavy-duty 28 ton |
| Suspension | Bogie suspension, spring suspension, air suspension |
| Floor | 3mm, 4mm, 6mm diamond steel plate |
| Electrical System | 24V, 7-core socket, European-standard lights (all markets) |
| Twist Lock | 8 or 12 sets |
| Other Parts | 1 tool box, 1 spare tire carrier |
We bought this extendable flatbed for transporting steel pipes from port to construction sites. The T700 main beam keeps the deck rigid even at full 20-meter extension. After ten months of heavy use, no cracking at the extension joints. The WABCO brakes stop the trailer confidently at full load.
2025-07-22
Good extendable trailer for the money. We haul structural steel and railway components on mixed road conditions. The bogie suspension gives the axles enough flex for unpaved stretches. Only issue was the spare tire carrier bracket needed welding reinforcement after about six months of rough roads.
2025-04-08
The adjustable length is what sold us on this HUAYU extendable flatbed trailer. We transport pipes ranging from 12 to 22 meters and this trailer covers the full range without overhang. The 60T rating handles our heaviest loads, and the BPW axles are serviceable at any truck shop in Accra.
2025-12-01
We have been running this trailer for over three years on long steel cargo routes. The T700 steel frame has proven its worth — no deformation or fatigue cracks despite daily use at near-maximum load. JOST landing gear and king pin are reliable. Good investment for anyone hauling long cargo in East Africa.
2025-09-15
