3 Axles 40FT Flatbed Semi Trailer For Sale
Flatbed Trailer$11,750.00
Price is FOB Qingdao, China. Ask us for a CIF quote to your destination port — we reply within 24 hours.
Reference price for the standard configuration — final pricing varies with your chosen specs and options. Send an inquiry for a detailed quote.
HUAYU 3 axle 40FT flatbed semi trailer with 12 container locks, Q345B steel I-beam, and 50-60T payload for container and bulk cargo transport.
Trade Terms
- MOQ
- 1 unit
- Payment
- T/T — 30% deposit, 70% balance before shipment; irrevocable L/C at sight for larger orders
- Delivery Time
- 7–25 working days after deposit, by model and quantity
- Loading Port
- Qingdao Port, China
- Incoterms
- FOB / CFR / CIF
- Shipping
- RORO / flat rack / 40HQ–45HC container / bulk vessel
- Warranty
- 10 years main beam; 1 year body & welds (from date of shipment)
- Certification
- ISO 9001:2015, ISO 14001, China 3C
3 Axle 40 FT Flatbed Semi Trailer

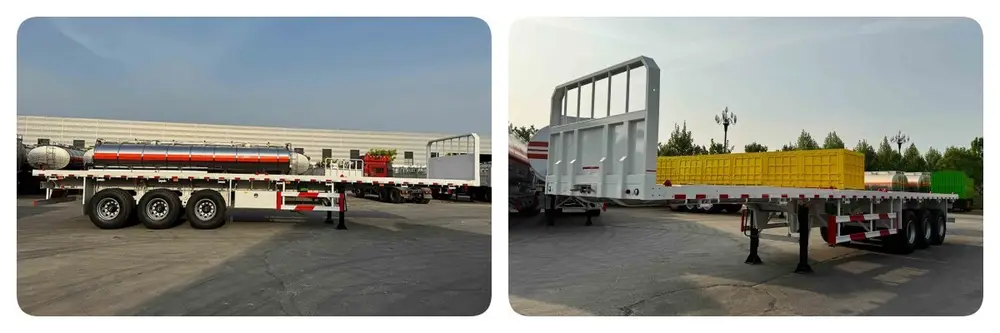

3 axle 40FT flatbed semi trailer detail view
Container Transport with 12-Lock System
HUAYU 3 axle 40FT flatbed semi trailers are built for container transport as their primary function. The three axles distribute weight evenly across all wheels, keeping the trailer balanced during transit. This flatbed semi trailer is equipped with 12 container locks, which allow containers to be positioned at the center of the platform. Center-loading prevents uneven weight distribution that causes the frame to sag over time — a common issue on trailers where containers sit too far forward or back.
HUAYU also builds 20-foot flatbed semi trailers on request for operators who need shorter platform configurations.
Safety for Non-Container Cargo
The flatbed includes a front fender and two side pillars. When the trailer is not carrying containers, these pillars secure cargo like steel pipes and round logs. Pipes and logs can roll during transport — the side pillars act as stops that prevent the load from shifting off the deck. This safety detail matters on winding roads and at highway speeds.

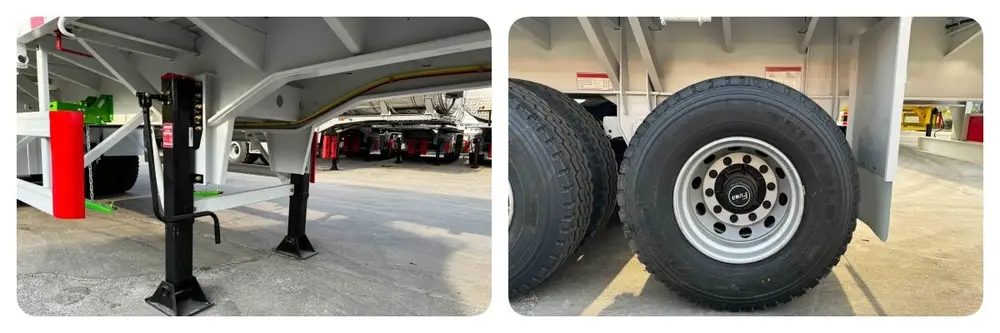

3 axle 40FT flatbed semi trailer axle and suspension detail
Axles: 3 units, HUAYU / BPW / FUWA / other
Landing Gear: JOST / FUWA / SAF Holland / HUAYU brand

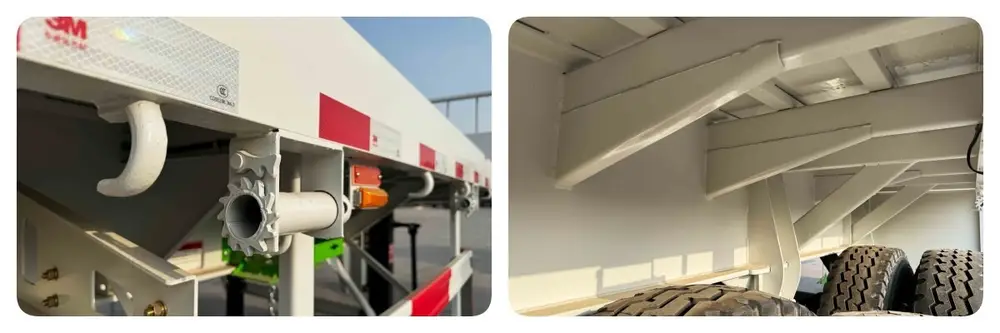

3 axle 40FT flatbed semi trailer high-thickness side support
HUAYU 3 axle flatbed semi trailer with high-thickness side support
HUAYU 3 axle flatbed semi trailer with rope hook, rope tightener, and side bumper
HUAYU Semi Trailer Production
HUAYU operates a 600,000 square meter factory with 10 semi-trailer production lines. Dedicated workshops handle low-plate semi trailers, powder tank semi trailers, and oil tank semi trailers separately. The production team includes 500 employees and 50 semi-trailer designers, and the factory accepts custom orders to match specific buyer requirements.
| Parameter | Value |
|---|---|
| Dimension | 12.5m x 2.5m x 1.55m |
| Payload | 50T-60T |
| Tare Weight | About 7.5T |
| Twist Lock | 12 units |
| Main Beam | Heavy-duty I beam, Q345B high-tensile steel, welded by automatic submerged-arc process |
| Frame Beam | Top flange 14mm, width 140mm; middle flange 8mm; bottom flange 16mm, width 140mm; main beam height 500mm |
| Frame Floor | 3mm pattern thickness |
| Edge Beam | 16# Channel |
| Through Beam | 10# Channel |
| Along Beam | 6# Channel x 6 |
| Axle | 3 pcs |
| Landing Gear | 28T lifting capacity with two speed, Jost brand |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension |
| Leaf Spring | 90mm(W) x 16mm(T) x 10 Layer |
We operate container shuttles out of Basra port and needed a second 40ft flatbed for growing volume. This trailer carries both loaded 40ft boxes and mixed pallet cargo without any drama. The twist locks engage positively and the deck height matches our dock levelers. One small gripe — the mudguards collect road tar quickly, but that is cosmetic. For port-to-city container work in Iraq this flatbed is a practical, good-value choice and I would buy another when we expand.
2026-05-12
We move containers from Apapa port to warehouses around the city. Bought this HUAYU 40ft flatbed about two months back. The frame is stiff, locks hold the boxes firmly, and it tows smooth even at full load. Very solid trailer for the price.
2026-04-30
