4 Axles Side Wall Fence Cargo Semi Trailer
Fence Trailer$14,500.00
4 axle side wall fence cargo semi trailer with 100T payload for livestock, bulk cargo, building materials, and container transport.

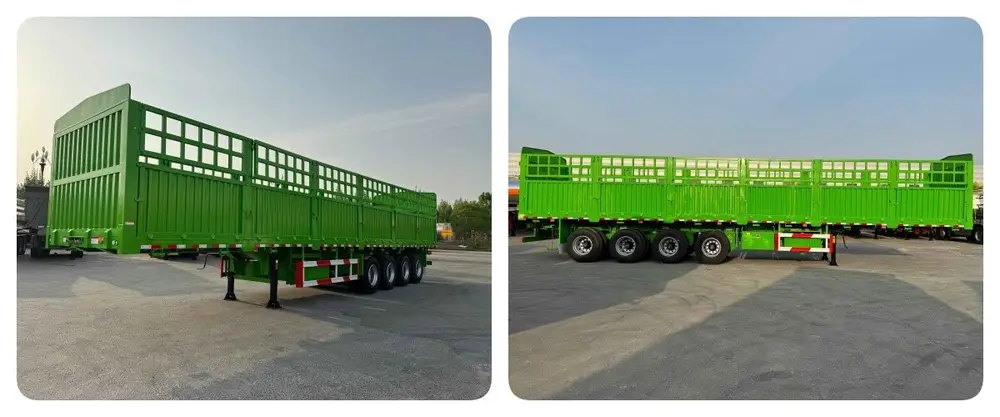

4 axle side wall fence cargo semi trailer

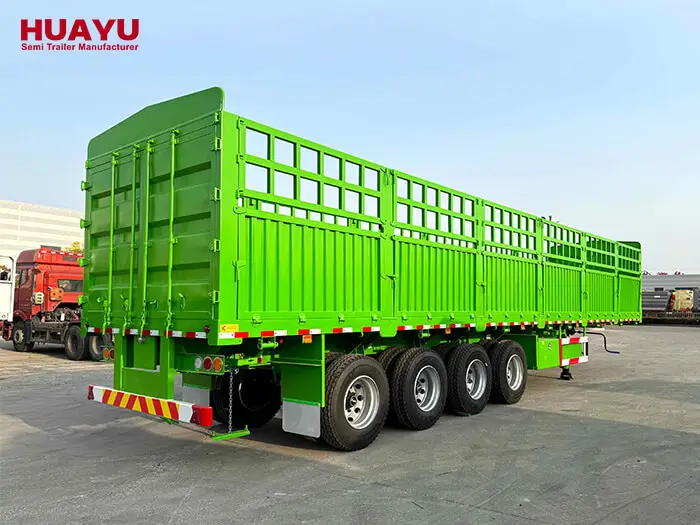

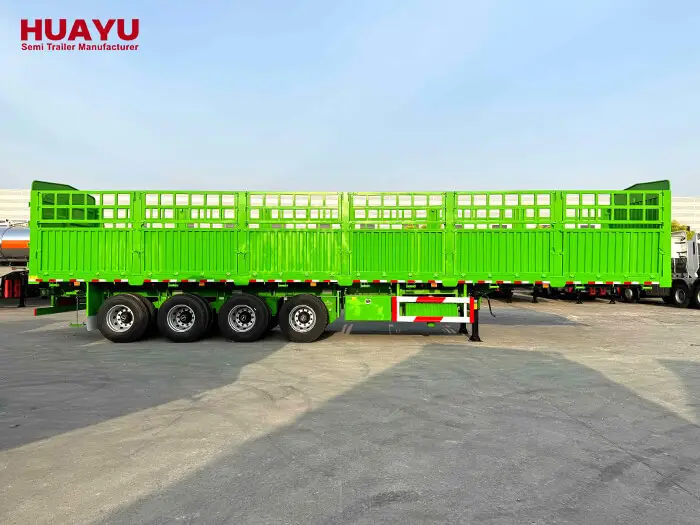

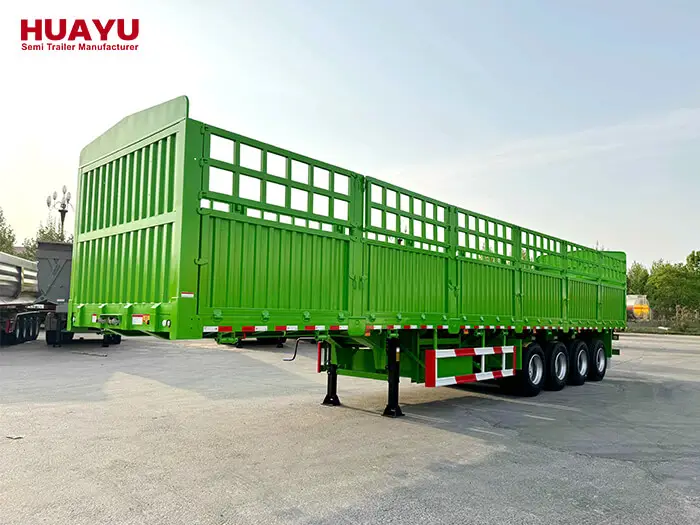

HUAYU 4 Axle Side Wall Fence Cargo Semi Trailer
The HUAYU 4 axle side wall fence cargo semi trailer handles a 100-tonne payload on a 15m x 2.6m x 3.05m platform. This fence cargo semi trailer is built for transporting livestock and animals, bagged bulk cargo, vegetables and fruits, building materials, and mechanical parts. The four-axle configuration distributes that 100T load across more axle lines than a standard three-axle trailer, which helps meet stricter axle weight regulations in some markets.
HUAYU customizes this side wall fence cargo semi trailer in different sizes and load capacities to match specific buyer needs. The fence panels are removable — when fences come off, the trailer carries containers using the 12 built-in twist locks. That dual-use design means operators who haul cargo during one season and containers during another do not need two separate trailers. For operators who do not need fence panels, HUAYU also offers side wall trailers with solid removable walls.
Running Gear and Suspension
Four FUWA axles carry the load, paired with 12R22.5 tires (16 pieces). Mechanical suspension with 90mm x 16mm x 10-layer leaf springs is the standard configuration. JOST-type landing gear has 28T lifting capacity with a two-speed mechanism. A 2.00 or 3.5 inch bolt-in king pin connects to the tractor. Standard accessories include a tool box and spare tire rack.

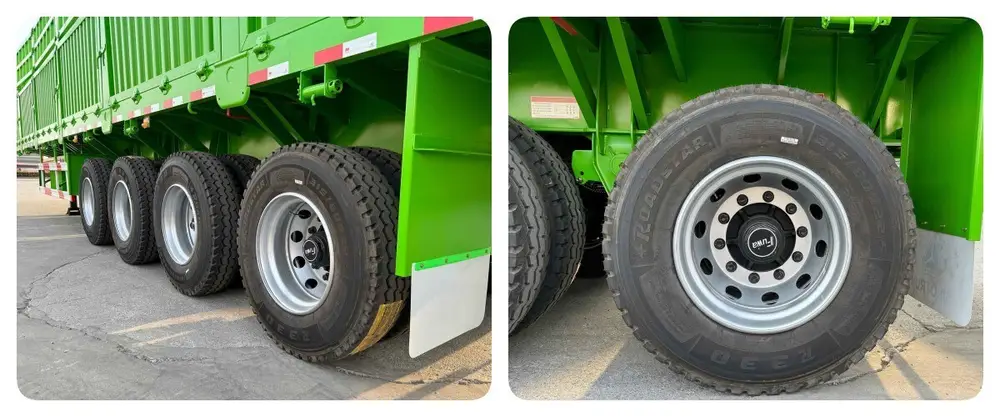

HUAYU 4 axle fence semi trailer with double tires and FUWA axle

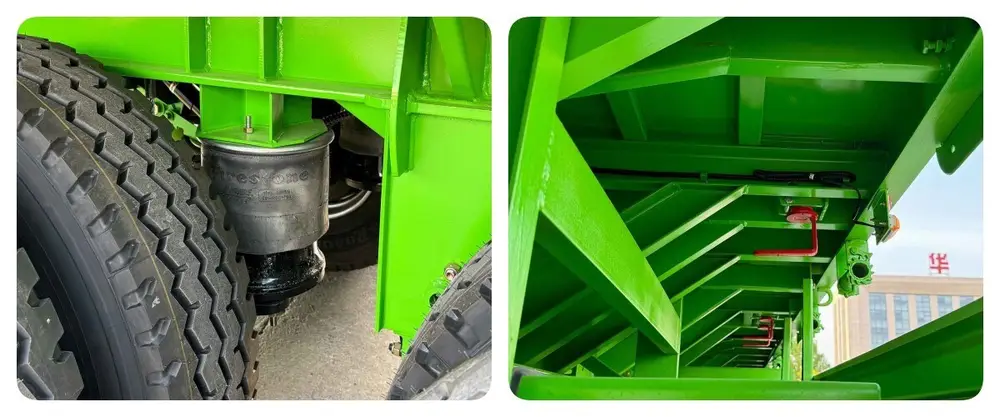

Four-axle fence semi trailer with high-quality air suspension
Removable Fence and Paint Quality
The removable fence design is the key feature of this side wall fence cargo semi trailer. Fences lift off without cutting or welding, and the trailer converts between cargo hauler and container carrier in a short time. Side wall height is 70cm with fence height at 80cm — enough containment for bulk loads and livestock while keeping total height manageable.

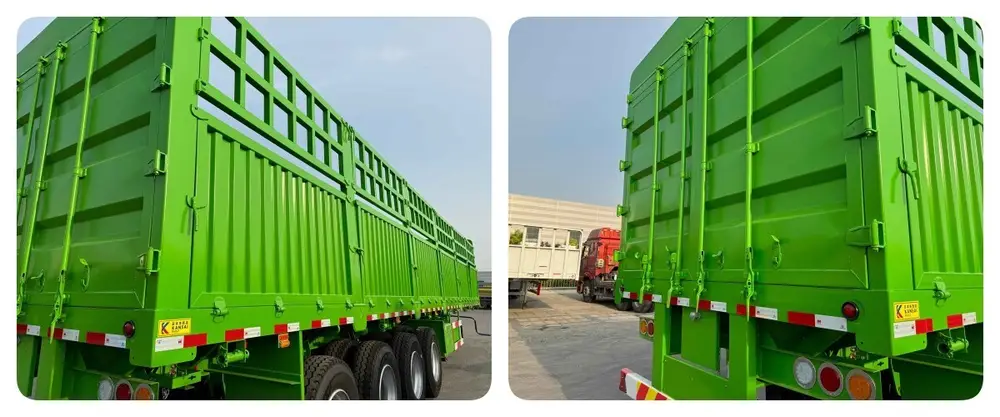

Four-axle fence semi trailer with removable fence
The paint system uses Japanese Kansai Paint, which is known for durability and environmental compliance. Quality paint matters on a working trailer — cheap coatings break down within a year under sun, rain, and abrasion from cargo loading. Kansai Paint holds up longer, which protects the steel underneath from corrosion. Regular maintenance further extends the trailer's service life. Tare weight is about 11.6 tonnes.
| Parameter | Value |
|---|---|
| Dimensions | 15m x 2.6m x 3.05m (outside) |
| Payload | 100 tonnes |
| Side Wall Height | 70cm |
| Fence Height | 80cm |
| Tare Weight | About 11.6 tonnes |
| Twist Locks | 12 units |
| Axle | 4 axles, FUWA |
| Landing Gear | 28T lifting capacity, two-speed |
| King Pin | 2.00 or 3.5 inch bolt-in |
| Suspension | Mechanical suspension |
| Leaf Spring | 90mm x 16mm x 10 layer |
| Tires | 12R22.5 x 16 pcs |
We bought this 4 axle fence cargo trailer for building materials and livestock transport. The 100-tonne payload handles our heaviest loads, and the removable fences let us switch to container work when needed. FUWA axles and the Kansai paint have both held up well after eight months.
2023-10-14
Good multi-purpose trailer for the money. The four-axle setup distributes weight better on our roads than our older three-axle units. We use it mainly for bagged cargo, and the side wall height keeps everything secure during transit. Leaf spring suspension gives a decent ride quality.
2020-10-06
This side wall fence trailer is exactly what our operation needed. We haul cargo three weeks of the month and containers for the fourth. The fence removal process is fast and the twist locks hold containers tight. Build quality and paint finish are both better than we expected at this price.
2024-08-19
We have operated this 4 axle fence trailer for over three years. The frame and welds are still solid despite daily use on rough roads. The Kansai paint finish still looks good and the steel underneath is protected. For operators who need a heavy-duty multi-purpose trailer, this is a strong option.
2018-05-30
