4 Axle 80T Livestock Transport Cargo Fence Semi Trailer
Fence Trailer$14,400.00
HUAYU 4 axle 80T fence semi trailer for livestock, bagged cargo, building materials, and agricultural products with removable fence panels.

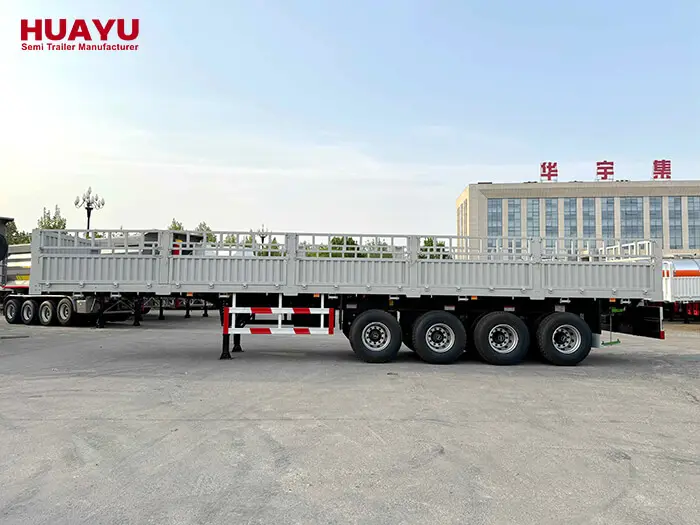

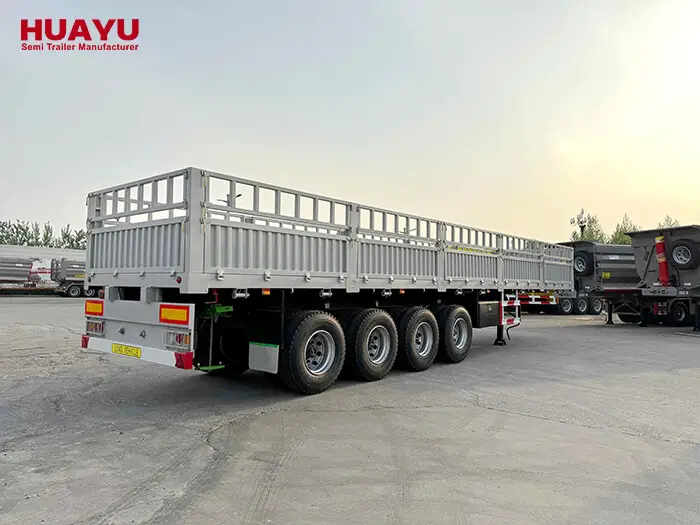

HUAYU 4 Axle 80T Livestock Transport Cargo Fence Semi Trailer
The 4 axle fence semi trailer is widely used in bulk and livestock transportation. HUAYU builds these trailers in different sizes and load capacities to match specific route and cargo requirements. The fence panels are removable — take them off and the platform works as a flatbed for container transport using the 12-unit twist lock set. One trailer, two functions.
The 80cm fence height keeps livestock contained during transit, while the 70cm solid side wall below it blocks road debris and wind exposure. For operators hauling cattle or other animals on rough roads, that combination of fence and wall height reduces the risk of cargo shifting or animals being injured.

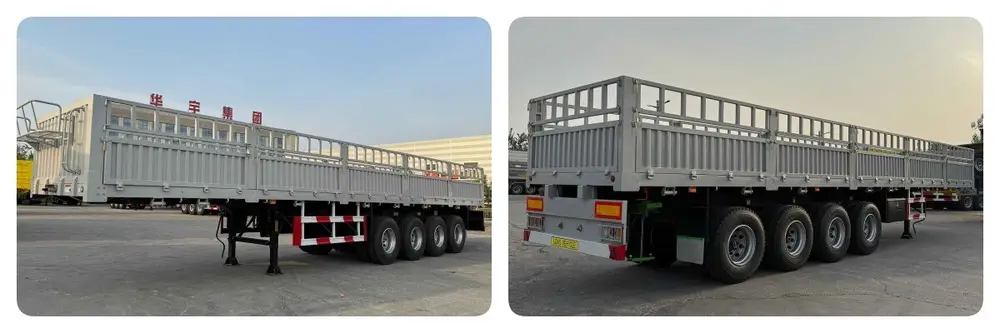

HUAYU 4 axle 80T fence semi trailer detail
Axles and Running Gear

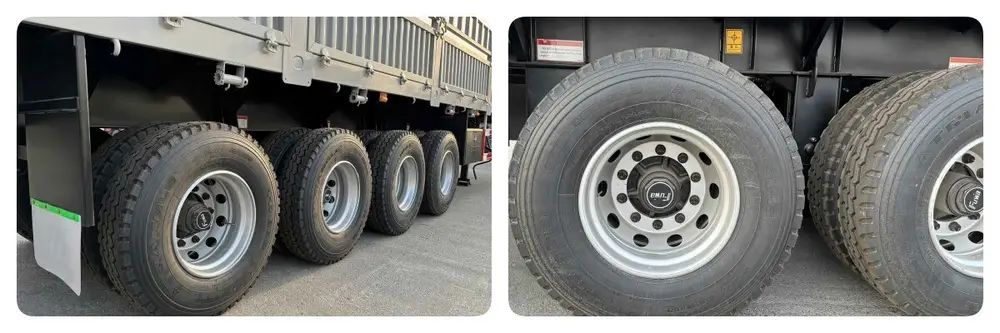

HUAYU 4 axle fence semi trailer with 13R22.5 double tyres and FUWA axle
The 4-axle configuration spreads the 100T payload rating across 16 tires, reducing per-tire stress and cutting tire wear on long hauls. The 10-layer leaf spring suspension at 90mm width handles heavy loads on unpaved roads where air suspension would be too delicate.

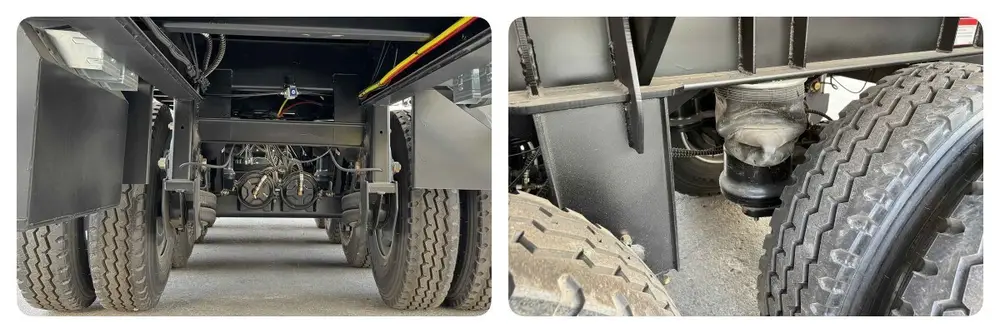

Four-axle fence semi trailer with high load-bearing capacity and stable structure
Landing Gear and Accessories

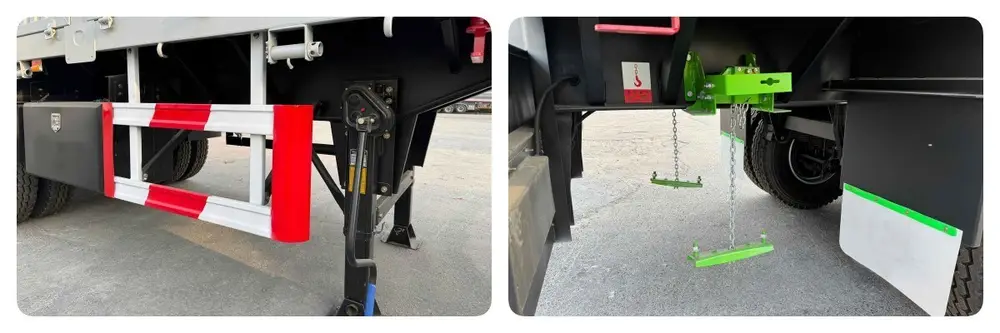

JOST legs and a spare tire rack
The 28T two-speed landing gear handles the weight of this fence semi trailer during coupling and uncoupling. A spare tire rack comes standard, and the tool box ships with the trailer so operators have basic maintenance equipment on the road.
| Parameter | Value |
|---|---|
| Dimensions | 15m x 2.6m x 3.05m (Outside) |
| Payload | 100T |
| Side Wall Height | 70cm |
| Fence Height | 80cm |
| Tare Weight | About 11.6T |
| Twist Locks | 12 units |
| Axles | 4 axles |
| Landing Gear | 28T lifting capacity with two speed |
| King Pin | 2.00 or 3.5 inch bolt-in |
| Suspension | Mechanical suspension |
| Leaf Spring | 90mm(W) x 16mm(T) x 10 Layer |
| Tires | 12R22.5 x 16pcs |
| Accessories | One standard tool box |
| Spare Tire Rack | One |
We purchased this 4 axle fence trailer for livestock transport between Nairobi and Mombasa. The fence height is good for cattle and the side wall keeps dust and debris out. After eight months of weekly trips the frame shows no flex or cracking under full load.
2023-04-18
The trailer does its job well. We use it for agricultural products mostly, and sometimes switch to containers by removing the fences. The 15-meter length gives us extra loading space compared to 3-axle models. Only complaint is the tare weight — at 11.6 tons it eats into our payload on weight-restricted routes.
2025-07-09
Best fence trailer we have owned. The FUWA axles handle our overloaded roads without issues, and the mechanical suspension is forgiving on gravel. We transport building materials and livestock with the same trailer and the removable fence design makes switching fast.
2024-08-22
We run this trailer on construction supply routes carrying bagged cement and steel reinforcement. The 100-ton payload rating gives us margin for heavy loads. After three years the twist locks still hold containers tight and the landing gear operates smoothly every time.
2025-02-14
