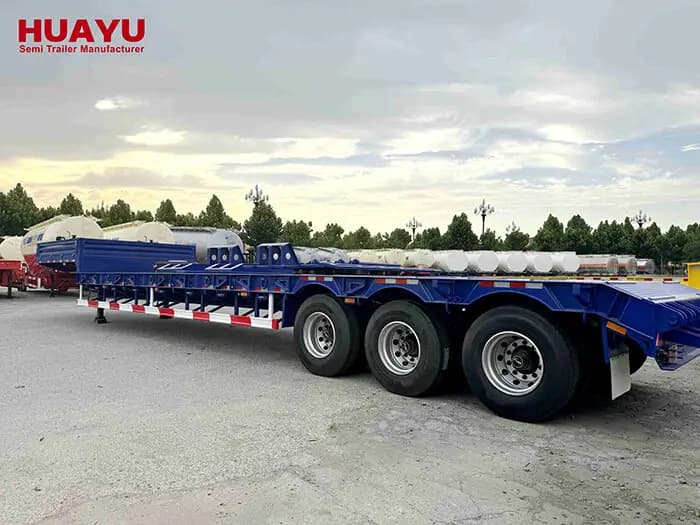

3 Axles 80Ton Lowbed Semi Trailer
Low Bed Trailer$26,000.00
HUAYU 3 axles 80 ton lowbed semi trailer for large cargo, rail vehicles, and construction machinery with low center of gravity.
HUAYU builds the 3 axles 80 ton lowbed semi trailer for structural quality and real-world load capacity. The company selects high-strength steel and customizes girder thickness based on each customer's actual weighing requirements. No standard template — the steel grade and plate dimensions match the loads the trailer will carry in service.
The 3 axles lowbed trailer typically transports 40 to 80 tons of mechanical equipment. For operators who need more capacity, HUAYU also produces 4 and 5 axle lowboy semi trailers rated above 100 tons. That range means buyers can match their trailer specification to their heaviest regular load without over-specifying and paying for capacity they won't use.

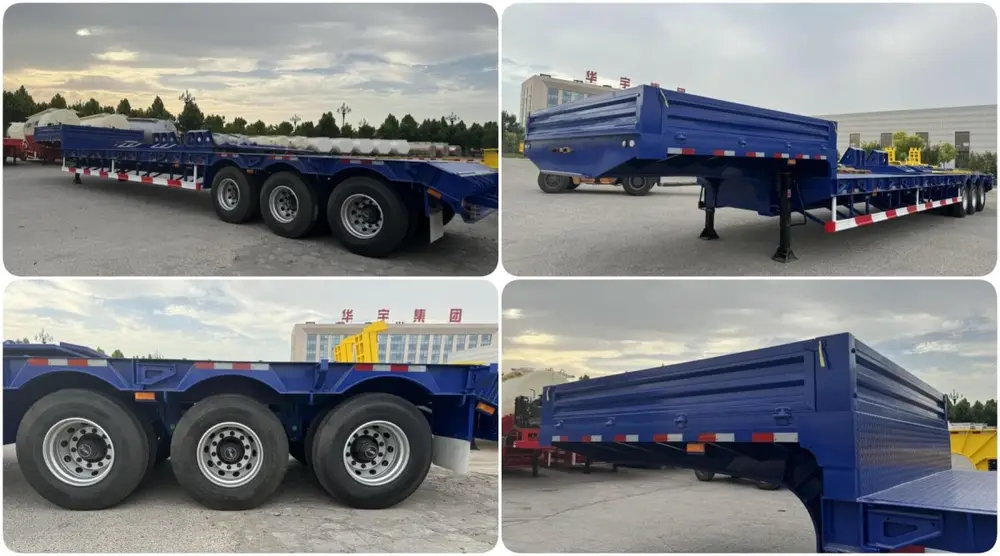

3 axles 80 ton lowbed semi trailer detail
Girder Thickness Matched to Load Requirements
HUAYU selects different thickness girders based on each customer's load. A trailer rated for 40 tons does not need the same beam profile as one rated for 80 tons, and overbuilding wastes material while adding tare weight that reduces payload. By adjusting the upper flange, web plate, and lower flange thickness, HUAYU keeps each lowbed semi trailer's tare-to-payload ratio within a practical range for the customer's operation.
3 Axles Lowbed Semi Trailer Details

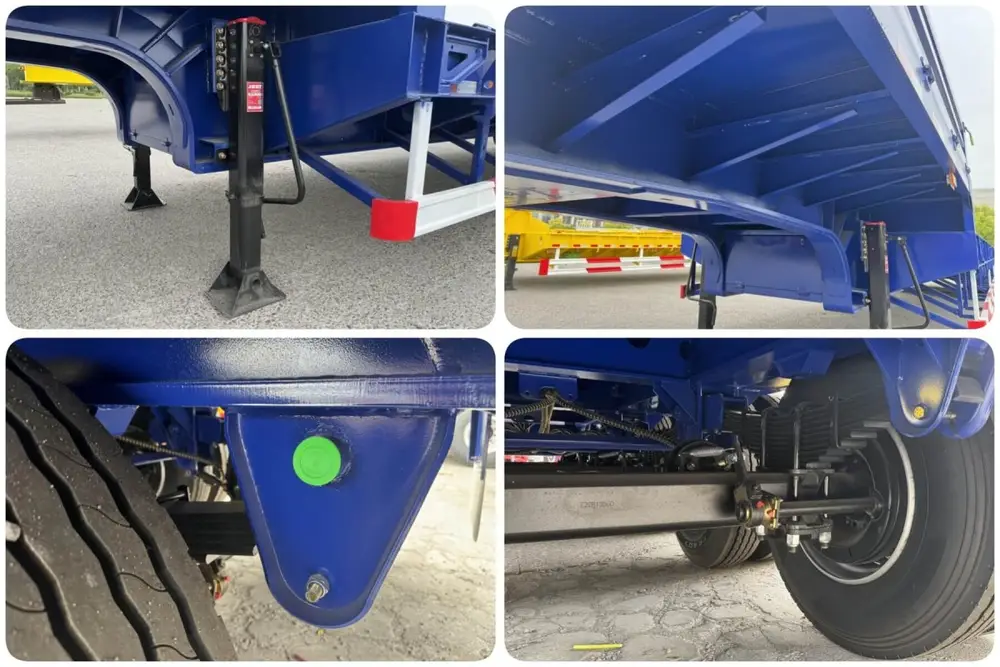

3 axles lowbed semi trailer suspension and axle detail
The low center of gravity on this 3 axles lowbed semi trailer gives it better stability and safety during transport, which is particularly important for rail vehicles, large construction machinery, and heavy industrial cargo. Tire options range from 235/70R17.5 up to 315/80R22.5, so operators can select the tire size that best suits their road conditions and speed requirements. Reinforced leaf springs at 90mm width and 16mm thickness in 10 layers handle the repeated shock loading that rough roads put through the suspension. Contact us for a custom quote on this configuration.
| Parameter | Value |
|---|---|
| Dimension | 14500 x 3000 x 1700 / 12500mm |
| Axle | FUWA, BPW, HUAYU |
| Suspension | Mechanical Suspension / Air Suspension |
| Landing Gear | JOST |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |
| Tire | 235/70R17.5, 245/70R17.5, 295/60R22.5, 11R22.5, 12R22.5, 315/80R22.5 |
| Leaf Spring | 90mm(W) x 16mm(T) x 10 Layer, reinforced type |
We ordered the 3 axle 80-ton lowbed for our construction fleet. HUAYU customized the girder thickness for our actual loads and the trailer has been running without issues for over a year. The JOST landing gear and bolt-in king pin work reliably every day.
2025-09-17
Solid lowbed semi trailer for the price. We use it for railway equipment transport and the low deck height gives us the clearance we need. The reinforced leaf springs handle our road conditions. Took about three weeks for delivery.
2025-03-12
This lowbed semi trailer is built heavy where it counts. The main beam has not shown any flex even at 75 tons on mining roads. We chose FUWA axles and they have been maintenance-free so far. Very satisfied with this purchase.
2025-06-03
We compared several Chinese lowbed trailer manufacturers before choosing HUAYU. The custom girder option and the range of tire sizes were deciding factors. Our drivers report stable handling even when fully loaded on highway curves.
2025-12-28
Good trailer for heavy equipment moves in tough conditions. The 3 axle configuration distributes weight well on our road network. BPW axles have proven durable in tropical heat and rain. We plan to order a 4 axle version for our heavier machines.
2025-07-15
