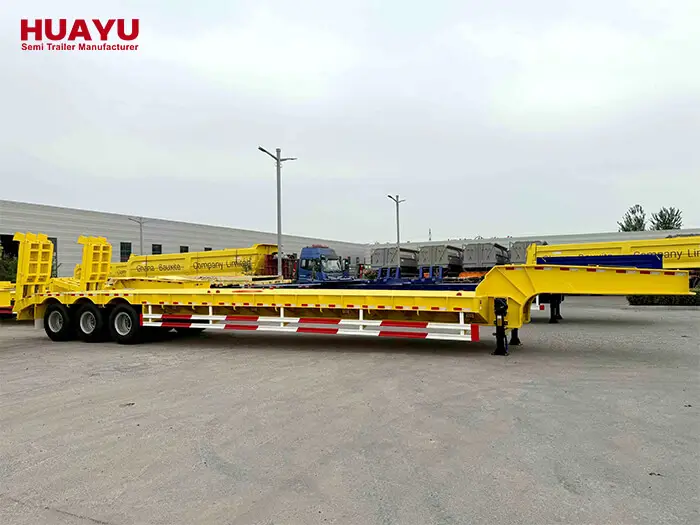

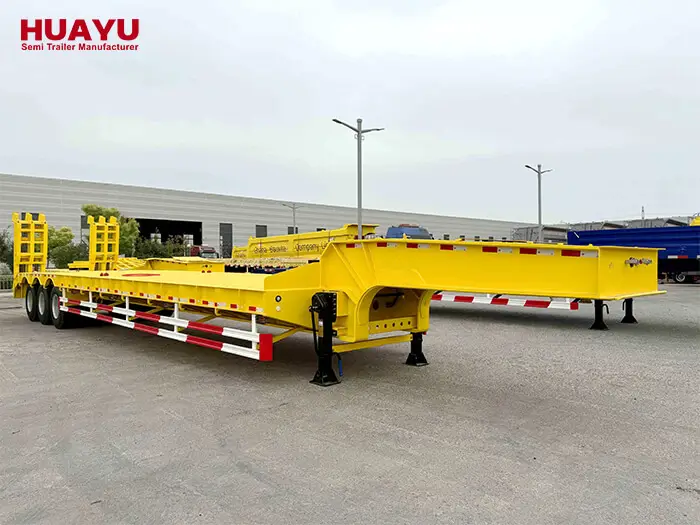

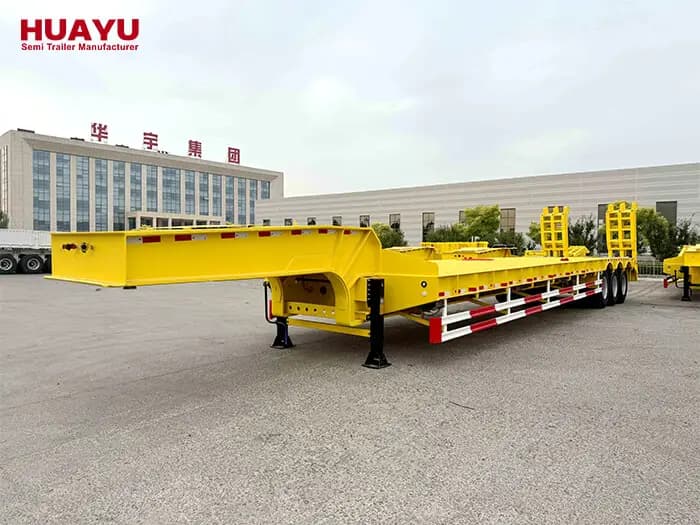

Tri Axles 60Ton Mechanical Transport Low Loader Semi Trailer

HUAYU 40t 60t 80t 100t 120t Lowbed Semi Trailer Range

The tri axles 60 ton low loader semi trailer is part of HUAYU's full lowbed range covering 40 to 120 tons across 2, 3, 4, and 5 axle configurations. This 3 axle model sits at the mid-capacity point — heavy enough for most standard excavators, bulldozers, and road construction machinery, but light enough on tare weight to keep payload efficiency high on African and Asian road networks.

HUAYU builds the main beam from Q345B steel, which has a 345 MPa yield strength. That steel grade gives this low loader semi trailer enough structural strength to handle repeated loading cycles on rough roads without developing the frame cracks and beam bowing that lower-grade steel trailers show after a year or two of hard use. For customers operating in Africa, where road conditions vary widely, Q345B extends trailer life compared to mild steel alternatives.

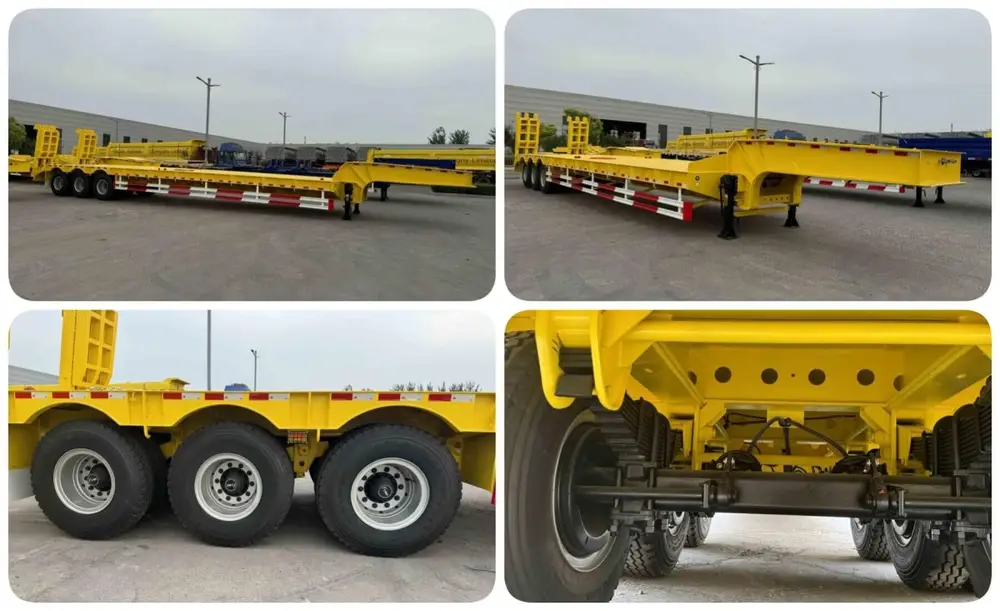

Tri axles 60 ton low loader semi trailer detail

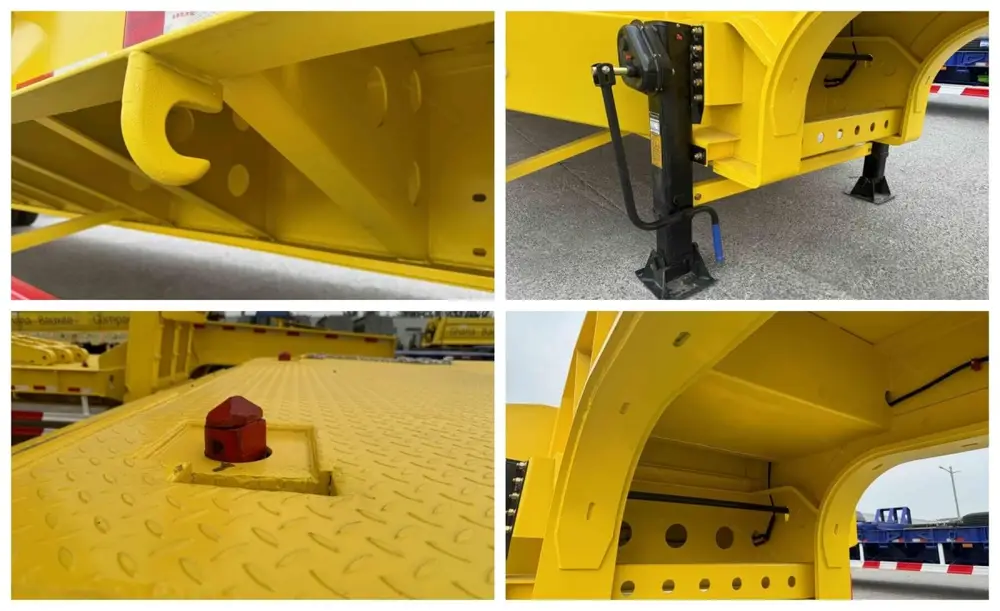

Tri axles low loader semi trailer suspension and axle detail

The low center of gravity on this low loader semi trailer gives it better stability and safety during heavy machinery transport. The cargo platform sits lower than the rear axle line, which means even super-tall equipment stays within overhead clearance limits on most road networks. FUWA axles with 90mm x 16mm leaf springs in 10-layer packs handle the impact loads from rough roads, and JOST landing gear and king pin are standard across the range.

Dimensions at 16,000mm x 3,000mm x 3,400mm are customizable, so operators who need a shorter or longer deck can work with HUAYU to adjust the trailer length for their typical loads. The 40-80 ton rated load range covers standard construction machinery from compact excavators up to mid-size bulldozers and loaded wheel loaders.
