4 Axle U Shape Rock Body End Dump Semi Trailer

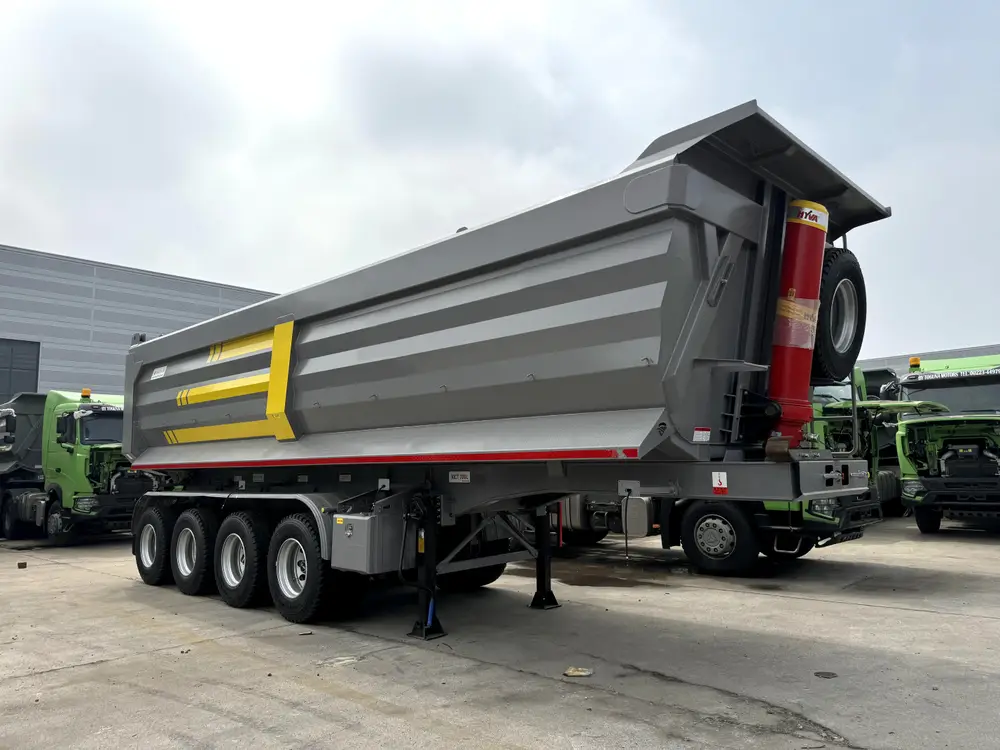

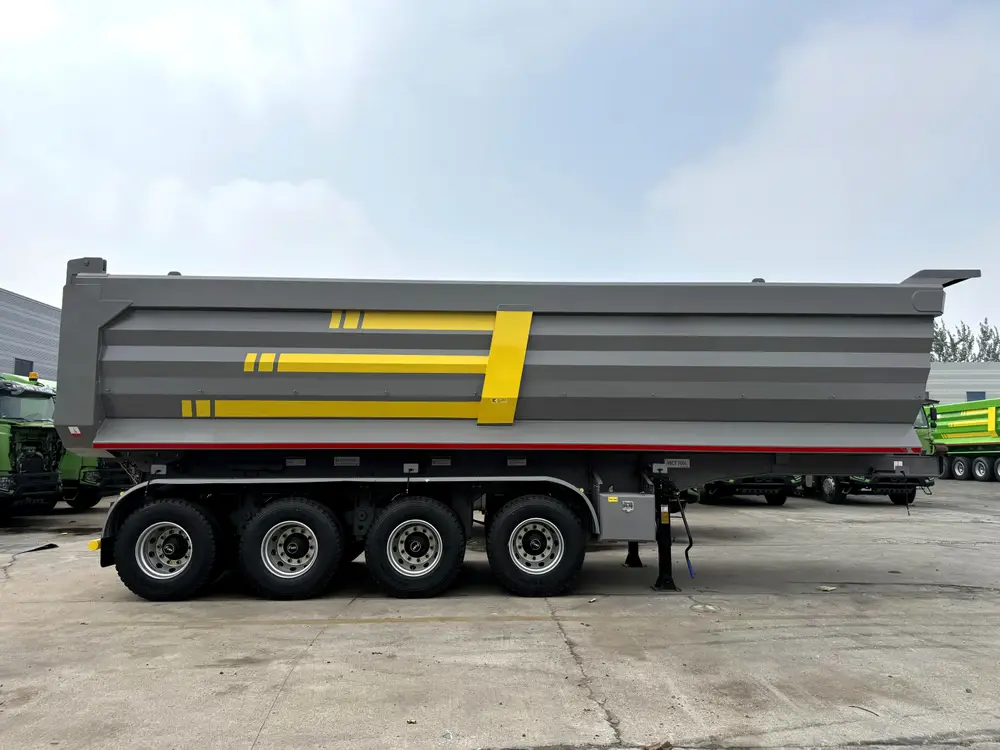

This is the 4-axle, air-suspension build of HUAYU's rock-body end dump line: a 45 m³ U-shape tipper rated at 60 tons on-road payload, laid out for operators running mixed-duty cycles where neither a 3-axle pit trailer nor a plain 4-axle flat-floor dump is the right tool. The extra axle spreads the 60-ton load across 16 tire contact patches instead of the 12 you get on a tridem, the air bellows level the chassis on the empty return leg, and the Baosteel ROCKY 450 cargo lining handles the loader drops that would wave a thinner-walled dump body inside a season. On-body stencils state the working envelope plainly: ROCKY 450 on the tailgate, 60t capacity marker next to it, and factory speed limits along the cab front.

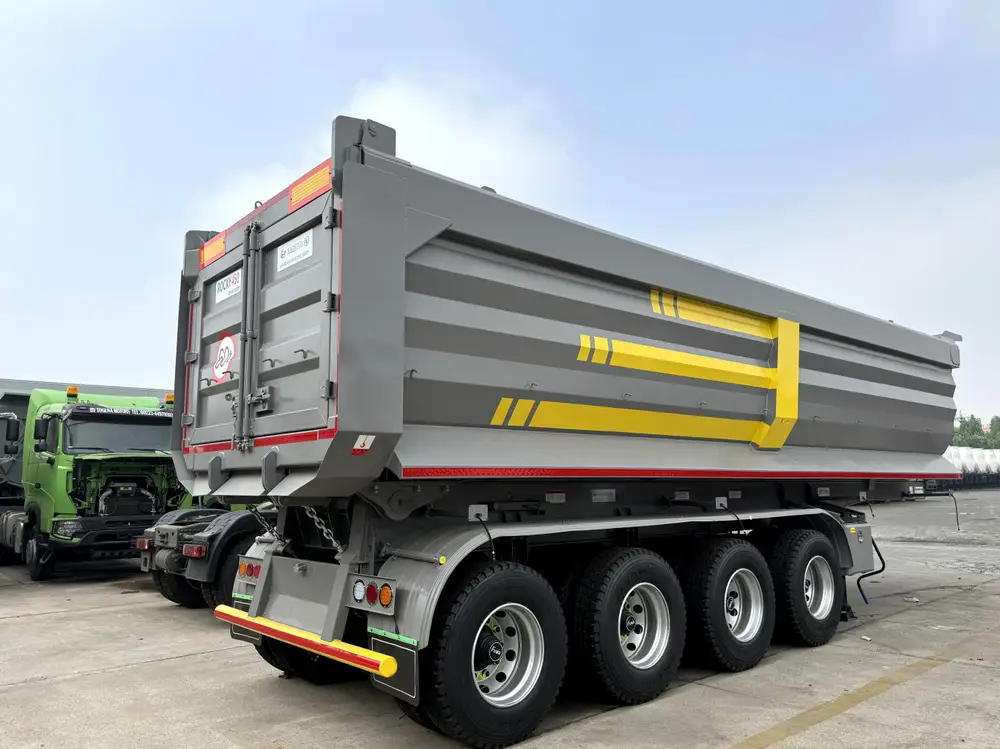

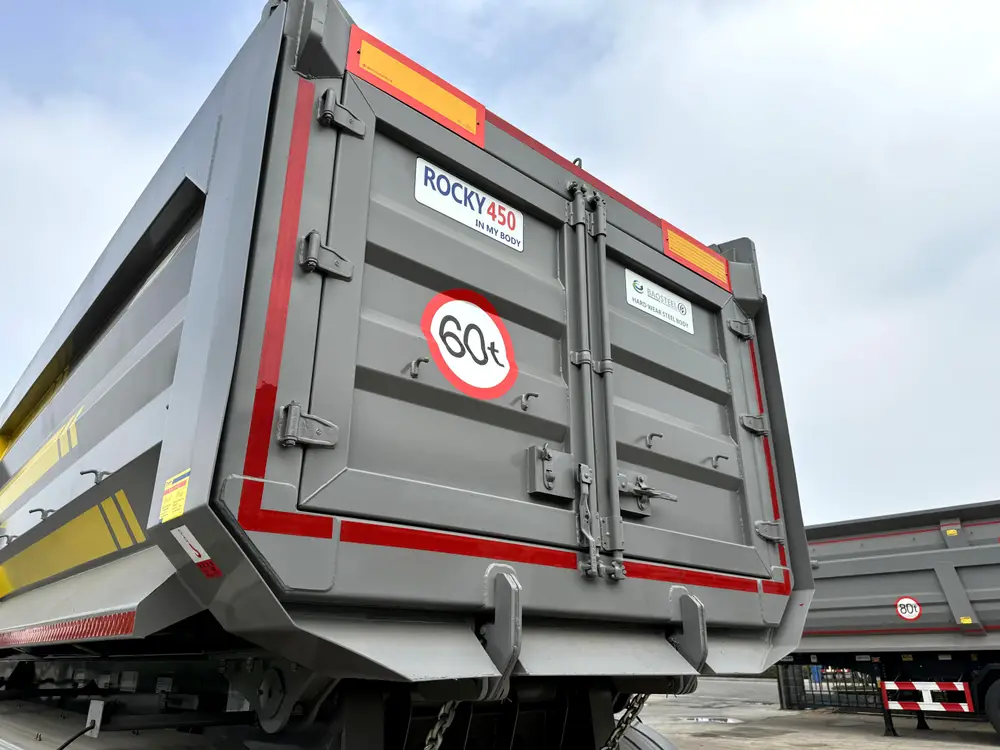

4 axle rock body dump trailer rear tailgate with Baosteel ROCKY 450 hard wear steel decal and 60 ton capacity stamp

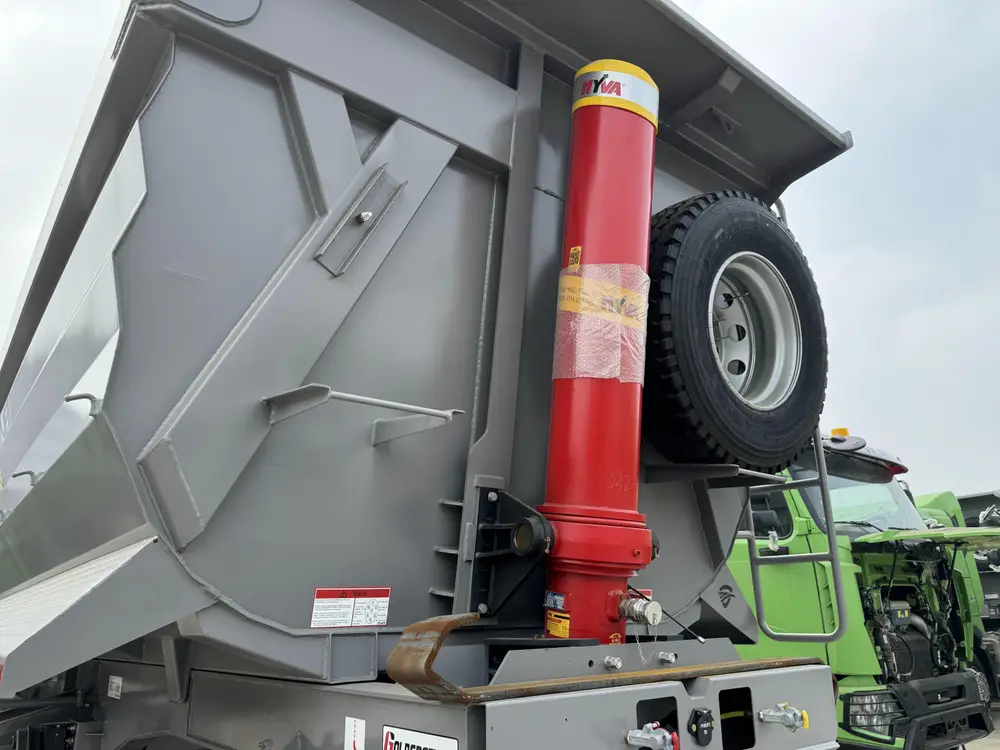

4 axle dump trailer HYVA front mount telescopic cylinder with spare tire and ladder

When 4 Axles Beat 3 Axles for Rock and Ore

Axle count is a payload and road-law decision before it is a component decision. The 3 axle U shape rock body end dump semi trailer is the right pick when a legal 45-to-50-ton load per round trip covers the haul economics. Once the material density, the distance, or the road ordinance pushes useful payload past that line, a 3-axle trailer is either overweight or the operator leaves revenue on the table. This 4-axle variant moves the legal ceiling to 60 tons on-road in most export markets, and to 80 tons under off-road mine-permit conditions with 16-ton axle upgrades. A rough rule from HUAYU's export sales team: if you load granite, iron ore, phosphate concentrate, or other density 2.0+ t/m³ material and the quarry-to-plant haul is over 20 km, the 4-axle rock body pays back the price delta inside the first year of operation.

The 4-axle layout also changes how the trailer rides empty. Three axles under a short empty rock body tend to bounce across expansion joints and bridge approaches; four axles plus air suspension damp that motion noticeably, which is why mixed-duty operators keep asking for this build.

Air Suspension Is Not a Comfort Feature on This Trailer

Default spec for rock-body dumpers in this weight class is heavy-duty mechanical leaf spring. Leaf packs are simple, forgiving, and absorb the vertical shock of a loader bucket dropping from 2 metres into the body without complaint. Air suspension is normally marketed as a ride-quality upgrade for highway-grade work. What matters on this trailer is a specific combination the air build enables: consistent ride height across axles regardless of load state, which keeps the kingpin at the correct height for the tractor fifth wheel on both the loaded and empty leg, and controlled shock absorption on the return leg, where the empty chassis is what hammers itself to pieces on bad roads over a service life.

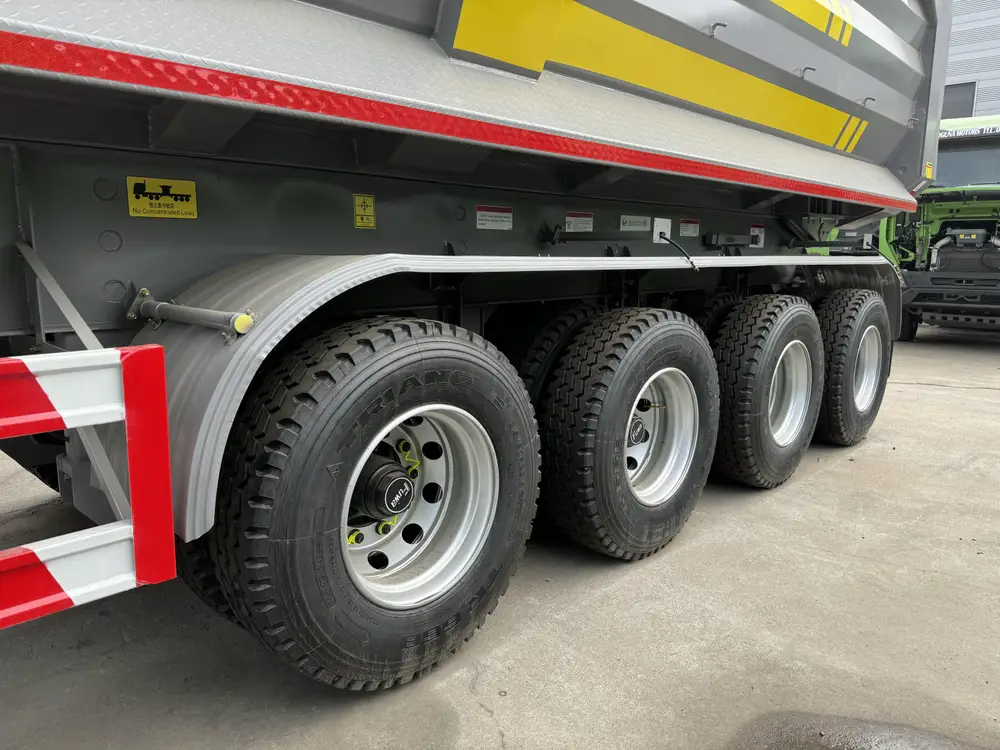

4 axle rock body dump trailer running gear with Triangle 12R22.5 mining tread tires and FUWA hubs

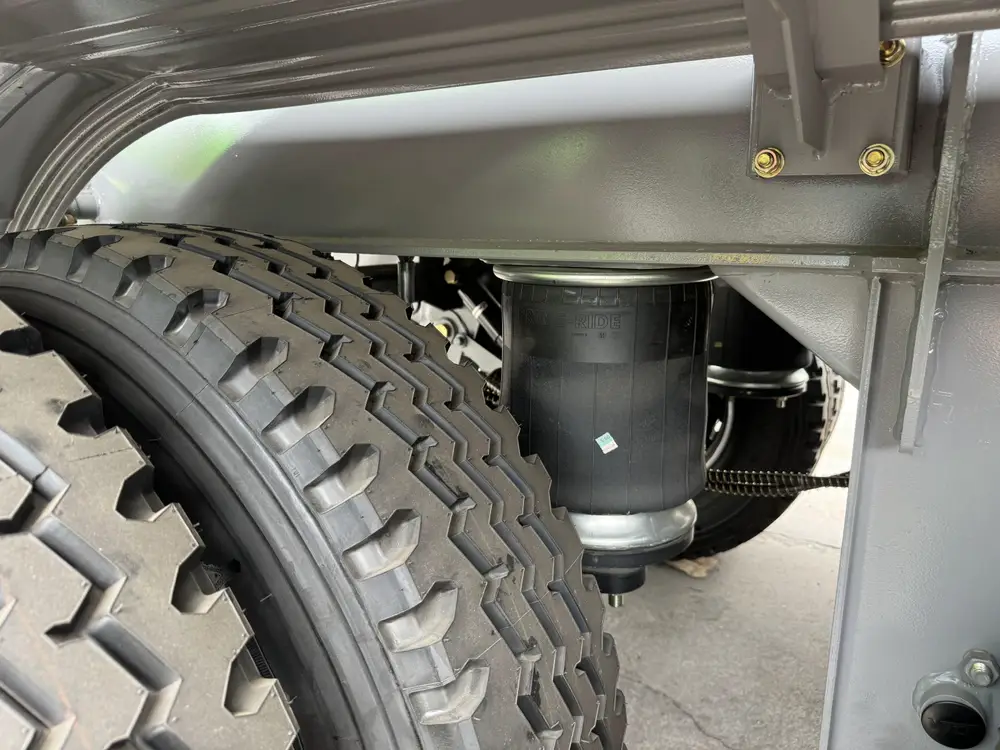

Air suspension bellow close-up under 4 axle rock body dump chassis

Air suspension is a trade-off, not a free upgrade. The bellows and levelling valves add weight and service points versus a leaf pack, and they need clean dry air from a tractor that is correctly maintained. Operators running pure pit duty with no paved road access and dirty tractor air systems are usually better served by the same body on a mechanical leaf-spring chassis, which HUAYU builds at no extra cost. Send us the haul profile (percent paved, load material, typical one-way distance, tractor brand) and the engineering team marks the suspension spec on the order.

For operators running this combination, air suspension also matters on public roads in Europe and Australia where axle-road-friendliness regulations reduce per-axle tolls on air-sprung trailers. The trailer is built to ECE R48 for external lighting, and ABS complies with ECE R13.

Tipping Geometry: 50° Body Angle and Sub-30-Second Cycle

The 5-stage HYVA FCA-series cylinder tips the body to 50 degrees from horizontal, measured at the rear hinge pivot. A 50° tip clears thicker and stickier material than the 45° maximum that most competitors stop at. The extra 5 degrees make a visible difference emptying damp sand, wet clay-bound rock, or partially compacted ore concentrate. Idle-pump cycle time from body-down to body-full-up is 25 to 35 seconds depending on fluid temperature and load density. Retract under gravity plus cylinder damping is about the same duration.

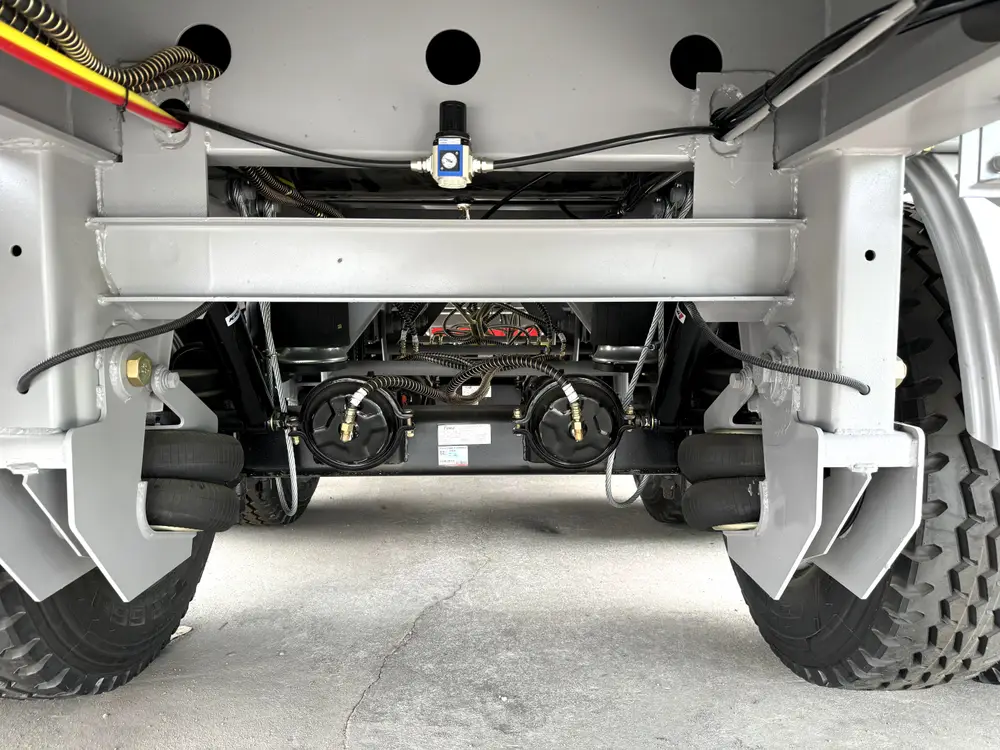

Underside view of 4 axle dump trailer showing air tank brake lines and cross members

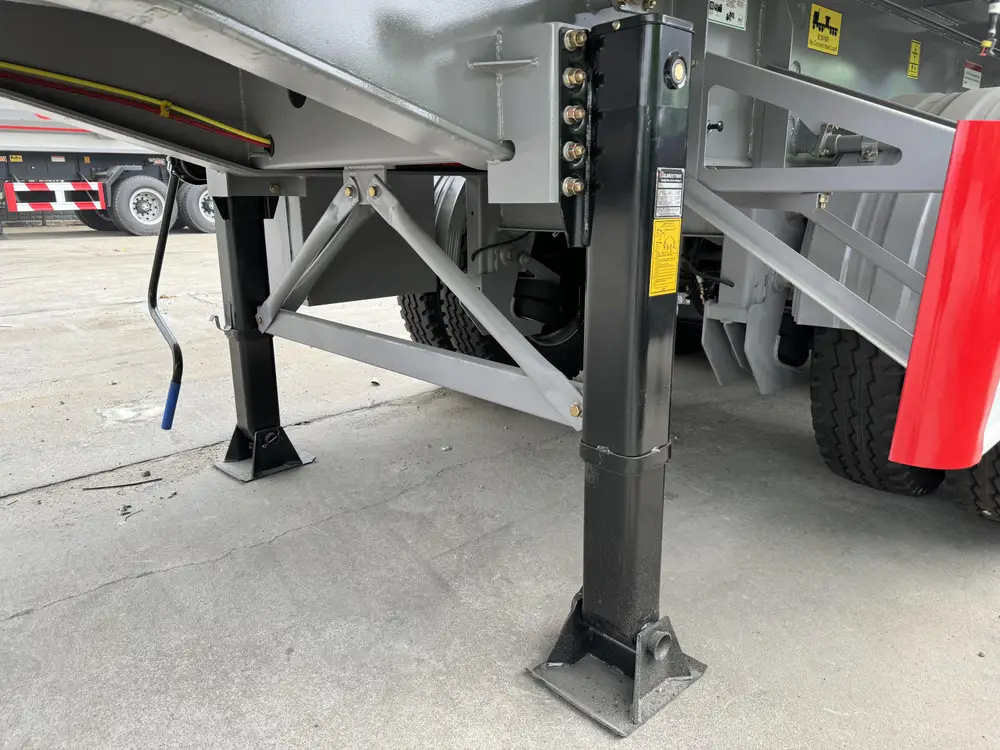

JOST 28 ton double speed landing gear under 4 axle rock body trailer chassis

HYVA cylinders are not cheaper than domestic alternatives, but the seal-kit supply chain across the Middle East, Africa, Central Asia, and Southeast Asia is the reason HUAYU specs them by default. A replacement seal kit in Dar es Salaam or Almaty takes days, not months. The cylinder mounts to a box-section cross-member at the front of the chassis on reinforced pivot pins, and a pilot-operated check valve on the cylinder base locks the ram in place if the supply hose loses pressure mid-lift.

Body Construction and Rock Body Fundamentals

The cargo body is one-piece pressed ROCKY 450 wear plate — 8 mm on the floor, 6 mm on the side walls — with external horizontal stiffener ribs welded to the outside of the shell so the wear plate inside the cargo zone is a continuous surface with no weld beads to catch material. The body sits on a Q345B chassis with a 500 mm web main beam and reinforcement at the front neck where the cylinder pivot reacts. The U-shape cross-section (rounded floor-to-wall transition, no internal 90° corners) is why it qualifies as a "rock body" rather than a flat-floor dump. Material rolls out cleanly in one cycle, which cuts the hammer-and-shovel cleanup work between loads.

For the longer write-up on ROCKY 450 hardness numbers and why wear plate outlasts Q345 for abrasive loads, see the 3-axle rock body product page which has the full material comparison. The 4-axle uses the same wear-plate grade and thickness; only the chassis length and axle count are scaled up.

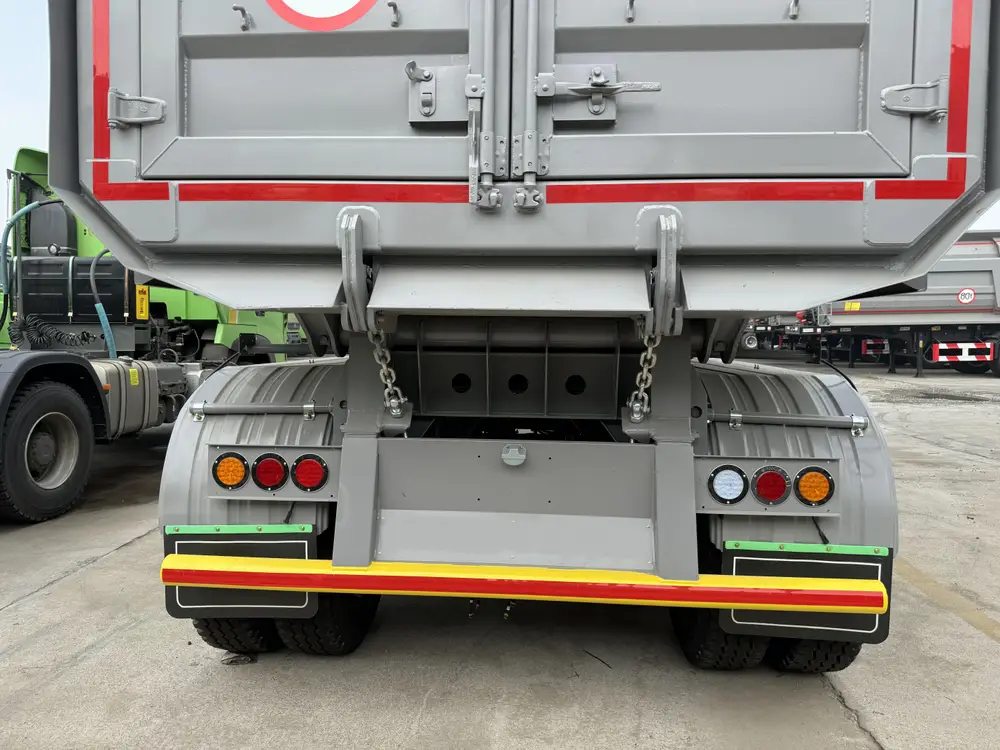

4 axle rock body trailer rear LED tail light cluster and yellow red reflective impact bumper

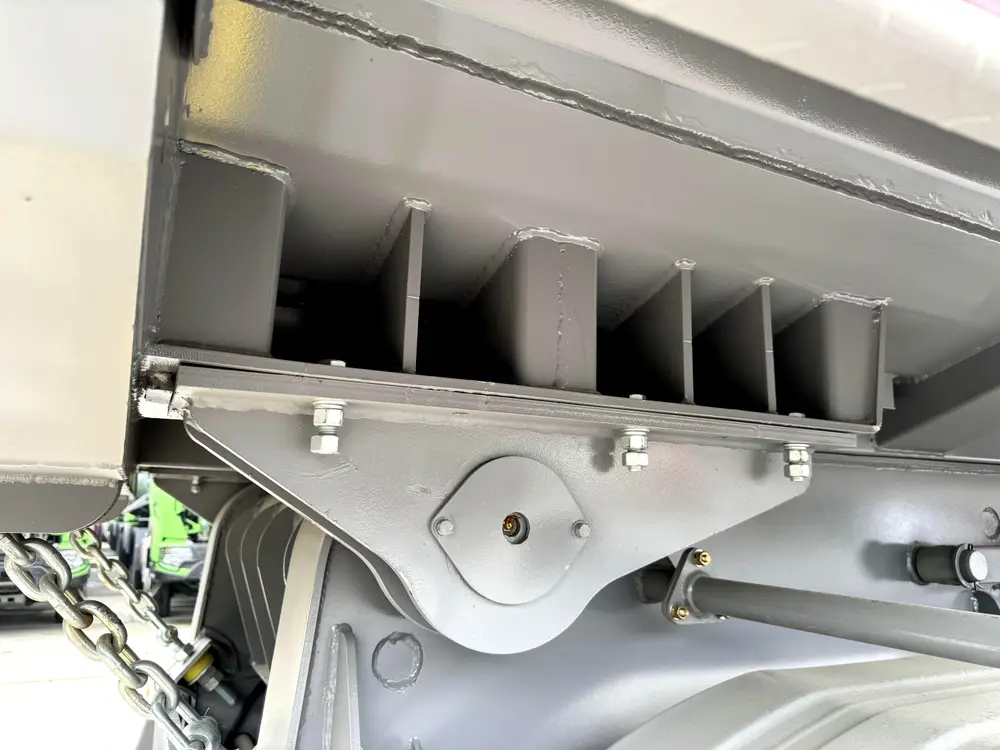

Rear body to chassis pivot hinge with reinforced mounting plate on 4 axle rock body trailer

Rest of the Spec Stack

• Kingpin: 90# JOST, 2 inch or 3.5 inch
• Landing gear: JOST 28-ton double-speed (see landing gear explainer)
• Brakes: WABCO dual-line ABS, EBS optional, 24 V electrical
• Tires: 12R22.5 Triangle mining tread, 16 total including two spares on the rear-of-cylinder carrier
• Lighting: Philips 7N socket, 24 V LED 4-function rear cluster, ECE R48 side markers
• Paint: 2-part epoxy primer plus polyurethane topcoat, standard gray with yellow safety striping, custom colors on request

Who Actually Buys This Configuration

• Quarry-to-batching-plant aggregate contractors moving 45 m³ of crushed granite, basalt, or limestone over paved haul roads
• Open-pit and underground mine operators in Central Asia and Africa running iron ore, copper concentrate, or phosphate between the pit and the rail siding
• Infrastructure project subcontractors on highway and dam builds where access roads are mixed paved and unpaved and the loaded weight pushes past 3-axle legal limits
• Demolition and site-clearance companies lifting broken concrete and rebar where a flat-floor dump would bend after the first month

If the haul profile is 100% pit duty with no paved road sections, ask about the mechanical leaf-spring build on the same body and chassis at the same price. If the volume need is smaller than 45 m³ and 50 tons covers the load, the 3-axle rock body is the right trailer at a $4,300 lower FOB price. Full tipper line-up including 4-axle basic end dump, square-shape, and side-tipper options is on the tipper trailer category page.

Frequently Asked Questions

How much more does the 4-axle rock body cost over the 3-axle version?

About $4,300 more FOB — $25,800 for this 4-axle build vs $21,500 for the 3-axle sibling. The price delta covers the extra FUWA axle, 4 extra tires on Triangle 12R22.5, the air suspension upgrade over mechanical leaf, the longer chassis and body (11.5 m vs 10.5 m), and the expanded 45 m³ cargo volume.

What is the on-road payload rating with standard FUWA 13-ton axles?

60 tons as stamped on the rear tailgate, which matches 4 × 13-ton axle nominal load plus the kingpin reaction on the tractor. This is the legal on-road rating in most HUAYU export markets. With the 16-ton FUWA axle upgrade the rating rises to 80 tons for off-road / mine-permit use only. Do not run 80-ton loads on public roads without written authority from the road authority in your country.

Can I order this on leaf-spring suspension instead of air?

Yes, at no extra cost. The same body, chassis, and cylinder fit on a mechanical leaf-spring running gear. Leaf-spring is the sensible choice for pure pit duty with no paved access or if the tractor fleet cannot supply clean dry air to the trailer circuit. Mechanical leaf on a 4-axle rock body is the default for many African and Central Asian mine-site operators.

What body volume options are available?

• 45 m³ standard (the photos show this configuration)
• 40 m³ for denser loads where the 60-ton axle rating caps the fill before the body does — typical for iron ore and copper concentrate
• 50 m³ tall-wall for lighter aggregate where volume is the limit, not weight — typical for sized coal or mulch
• Custom inner-body geometry available on request (partition wall, half-gate, side doors)

Material density drives the right pick. Tell us what you haul and the team will size the body.

Why is HYVA the default cylinder instead of a domestic brand?

Parts and seal-kit supply. HYVA distributors stock spares across Africa, the Middle East, Central Asia, and Southeast Asia — a failed seal kit can be couriered in 3-5 days instead of air-freighted from China in 3-5 weeks. For a trailer expected to tip 2,000+ times per year, the cylinder service network is more important than the cylinder's initial price. Domestic alternatives are available on request if your operation has a local service arrangement.

How does the 50° tipping angle compare to competitors?

Most 4-axle dump trailers cap at 45°. This trailer goes to 50° from horizontal, which makes a real difference clearing wet, sticky, or partially compacted material. The extra 5 degrees come from a longer HYVA 5-stage cylinder and a higher rear pivot geometry. Anything above 50° starts to risk rear-tip-over on uneven ground, so 50° is the operating limit.

What are FOB, CIF, and the lead time?

$25,800 USD is FOB Qingdao for the 45 m³ air-suspension standard build. CIF to your port adds $2,000-$3,500 depending on destination. Production lead time is 20-28 working days after deposit; add 25-45 days for shipping to Africa or the Middle East depending on the route. Send us the destination port and axle spec and the team replies with a CIF quote inside one working day.

Which component warranties apply?

Structural warranty on the main beam, body, and welded joints is 1 year from commissioning. HYVA cylinder, FUWA axles, WABCO ABS, JOST kingpin and landing gear follow their own OEM warranty terms as shipped with the trailer. Triangle tires and Baosteel plate are covered under manufacturer's terms. Full written warranty is delivered with the order confirmation.

---

Ask for a CIF quote with the destination port, preferred suspension (air or leaf), and target body volume. The HUAYU sales team replies within one working day on weekdays. Reach us on the contact page or WhatsApp from any page on the site.
