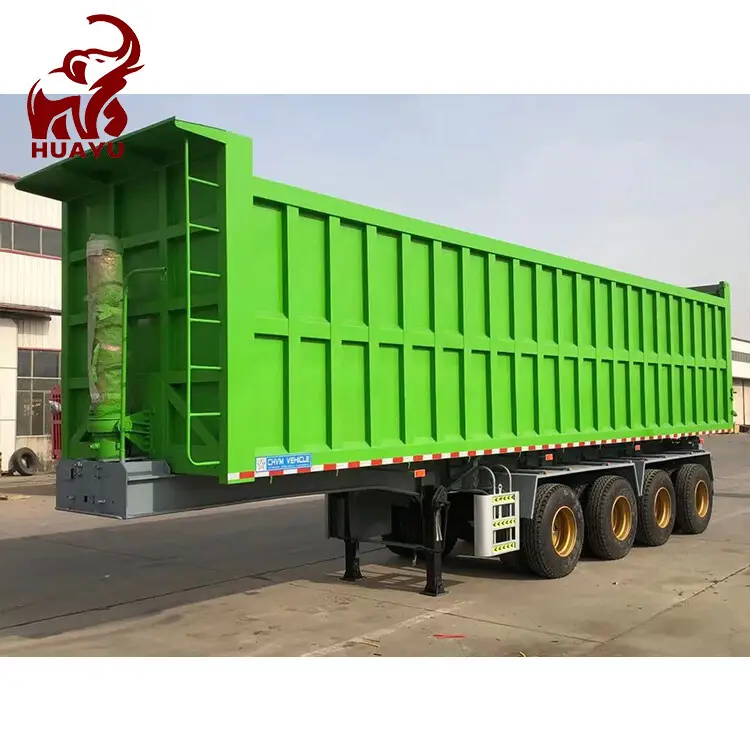

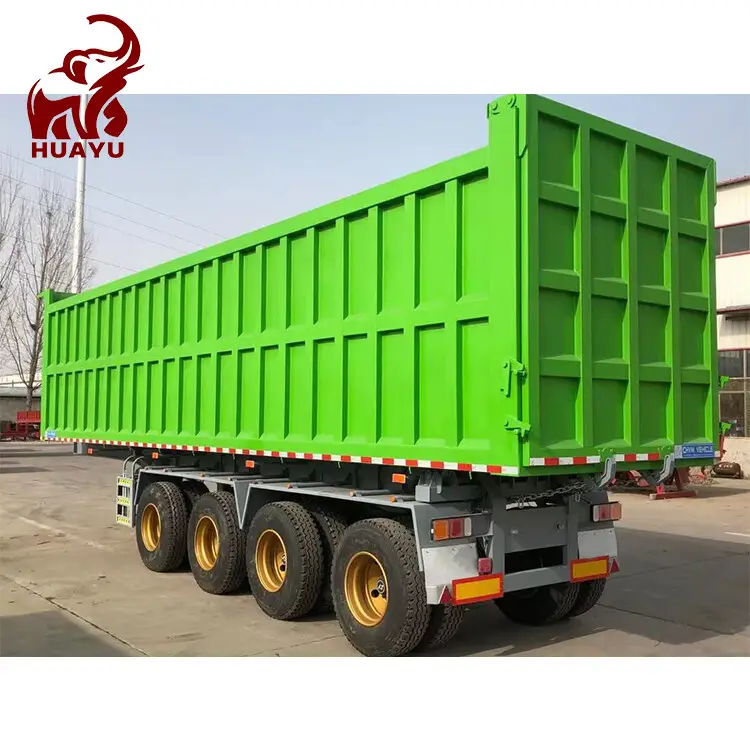

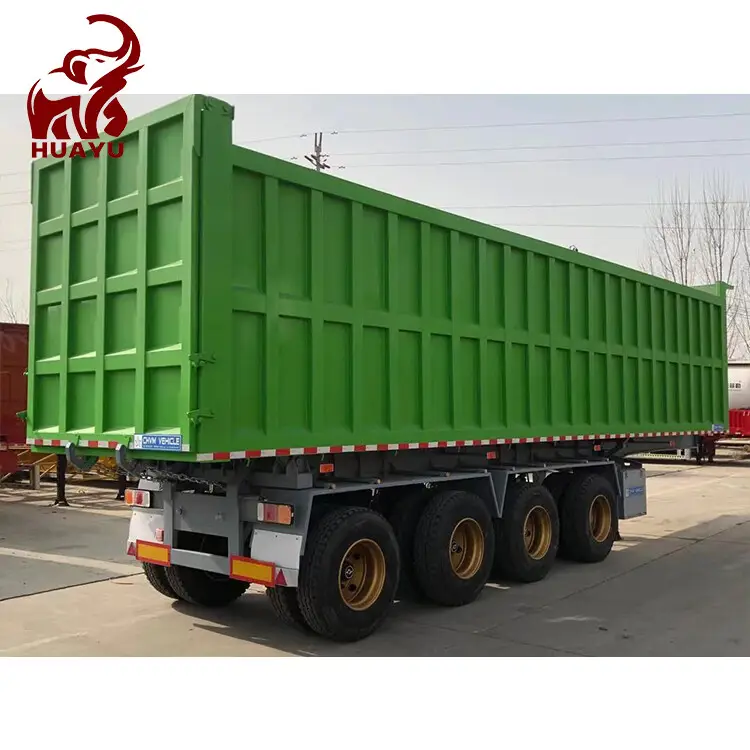

4 Axle End Dump Tipper Semi Trailer
Tipper Trailer$16,500.00
Price is FOB Qingdao, China. Ask us for a CIF quote to your destination port — we reply within 24 hours.
Reference price for the standard configuration — final pricing varies with your chosen specs and options. Send an inquiry for a detailed quote.
HUAYU 4 axle end dump tipper semi trailer with 50-60 ton capacity for sand, stone, gravel, and construction material transport.
Trade Terms
- MOQ
- 1 unit
- Payment
- T/T — 30% deposit, 70% balance before shipment; irrevocable L/C at sight for larger orders
- Delivery Time
- 7–25 working days after deposit, by model and quantity
- Loading Port
- Qingdao Port, China
- Incoterms
- FOB / CFR / CIF
- Shipping
- RORO / flat rack / 40HQ–45HC container / bulk vessel
- Warranty
- 10 years main beam; 1 year body & welds (from date of shipment)
- Certification
- ISO 9001:2015, ISO 14001, China 3C
HUAYU is a dump semi-trailer manufacturer with 20 years of production experience. This 4 axle end dump tipper semi trailer has a maximum load capacity of 60 tons and transports construction materials including sand, stone, crushed stone, and gravel. The 4 axle configuration gives this tipper semi trailer more load-bearing capacity and better weight distribution than 2 or 3 axle dump trailers, which matters on road networks with strict axle weight limits.

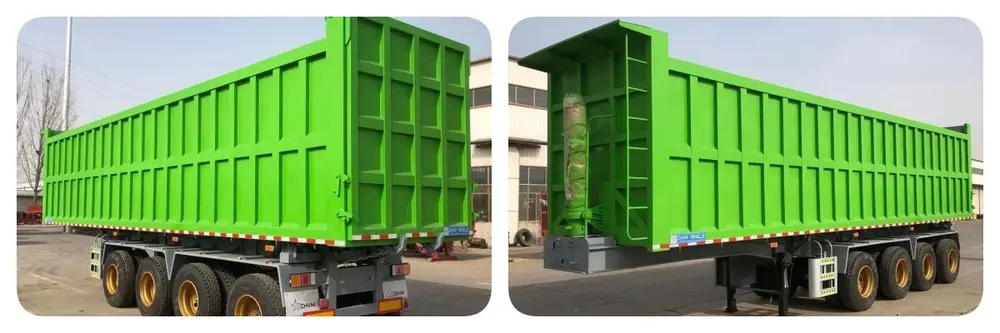

4 axle end dump tipper semi trailer detail
Landing Gear Specification
The 4 axle end dump tipper semi trailer is fitted with 28T lifting capacity landing gear with two-speed operation. The two-speed design lets operators raise and lower the legs quickly when unhitched and switch to a slower, higher-force mode when fine adjustment is needed during coupling.

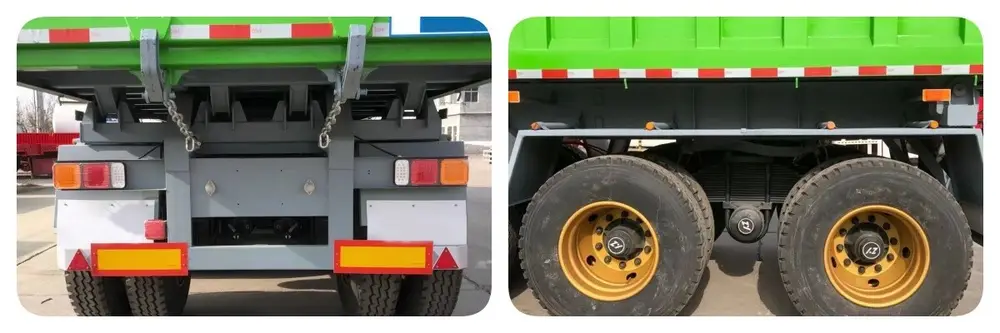

4 axle end dump tipper semi trailer rear view
Axle Options for This 4 Axle Tipper
HUAYU fits this 4 axle end dump tipper semi trailer with BPW axles as standard, and JOST or FUWA are available as alternatives. BPW axles are widely specified for dump trailers because of their long bearing life under high-load, high-vibration conditions — the kind of service that quarry and mine-site tippers see every working day.
The Q345B main beam and heavy duty lifting system give this tipper the structural base to handle repeated 50-60 ton dump cycles without developing the frame twist and hinge wear that end dump trailers with lighter construction show after six months. ABS braking adds safety on loaded downhill grades, and the 24V LED electrical system is visible in low-light conditions at mining and construction sites.
| Parameter | Value |
|---|---|
| Dimensions | 9600 x 2500 x 3450mm |
| Bucket | 9000 x 2400 x 1500mm |
| Load Capacity | 50 Ton - 60 Ton |
| Application | Sand, stones, crushed stones, building materials |
| Cylinders | Heavy duty lifting system |
| Main Beam | Q345B High tension carbon steel |
| Axle | BPW |
| Suspension | Mechanical / Air Suspension |
| Landing Gear | 28T lifting capacity with two speed |
| Tire | 12.00R20 |
| Brake System | ABS System |
| Leaf Spring | 90mm(W) x 16mm(T) x 10 Layer |
| Electrical System | 24V; 7 ways receptacle; LED lamps |
| Accessories | One tool box, one spare tire carrier |
| Colour and Marking | Meet client's needs |
We operate a sand supply business. This HUAYU 4 axle end dump has worked daily for about four months — strong body, powerful lift, clean unloading every time. I recommend it to every sand supplier I know.
2026-05-01
Our HUAYU 4 axle end dump works the quarry routes outside Addis Ababa. The body is tough, the hydraulic system lifts a full load without hesitation, and the trailer tracks well behind our tractor on rough access roads. For quarry and site work in Ethiopia, this tipper is one I recommend gladly.
2026-06-10
Months of hauling laterite — strong box, fast lift. Delivery was a little slow, trailer is great.
2026-07-01
