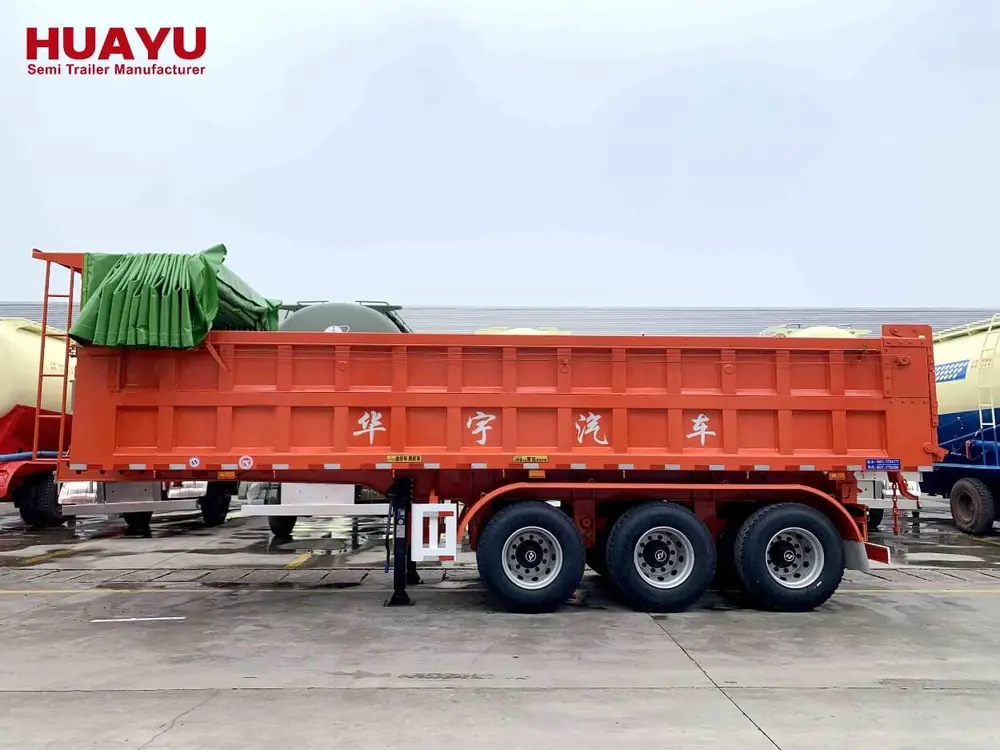

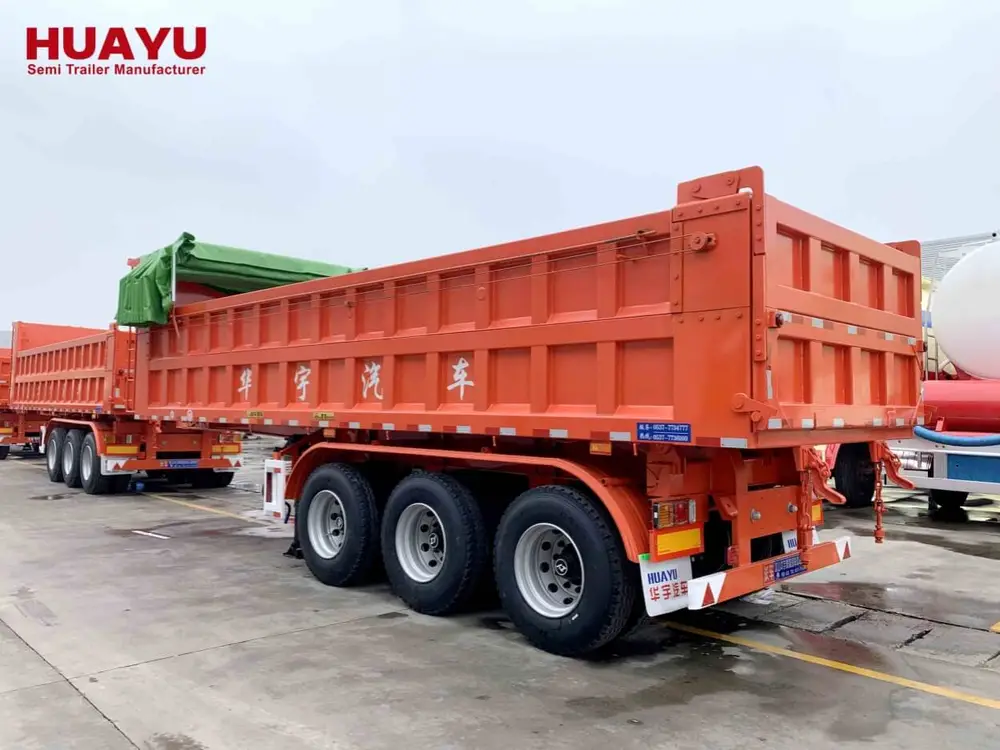

3 Axles Square Shape Rear Dump Trailer
Tipper Trailer$19,000.00
Price is FOB Qingdao, China. Ask us for a CIF quote to your destination port — we reply within 24 hours.
Reference price for the standard configuration — final pricing varies with your chosen specs and options. Send an inquiry for a detailed quote.
HUAYU 3 axles square shape rear dump trailer with HYVA hydraulic cylinder and BPW axles for coal, ore, sand, and bulk material transport.
Trade Terms
- MOQ
- 1 unit
- Payment
- T/T — 30% deposit, 70% balance before shipment; irrevocable L/C at sight for larger orders
- Delivery Time
- 7–25 working days after deposit, by model and quantity
- Loading Port
- Qingdao Port, China
- Incoterms
- FOB / CFR / CIF
- Shipping
- RORO / flat rack / 40HQ–45HC container / bulk vessel
- Warranty
- 10 years main beam; 1 year body & welds (from date of shipment)
- Certification
- ISO 9001:2015, ISO 14001, China 3C
Rear Dump Trailer Applications
Dump trailers split into two broad categories by use. The first is heavy duty and super heavy duty dump trailers for non-highway transport — these handle the hauling tasks on large mining operations and major construction projects, typically working alongside excavators to move extracted material short distances. The second category is the light and medium-sized road transport dump trailer, which carries sand, soil, coal, and other loose goods on public highway networks, normally paired with a wheel loader at the loading end.
This 3 axles square shape rear dump trailer falls into the second category. Its 40-60 ton load capacity and 40 cubic meter volume fit standard road construction, building material supply, and aggregate delivery operations. The square dump body shape holds volume well and dumps cleanly because the straight walls let material slide out without the bridging and hang-up problems that tapered designs sometimes cause with wet or sticky loads. See all tipper trailer options from HUAYU.

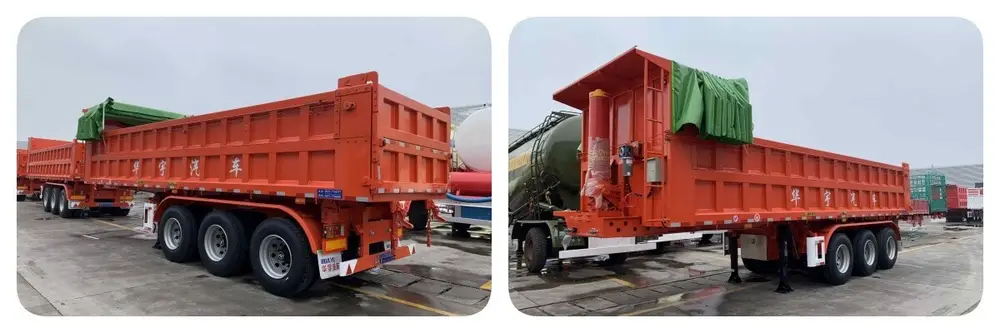

3 axles square shape rear dump trailer with BPW axles

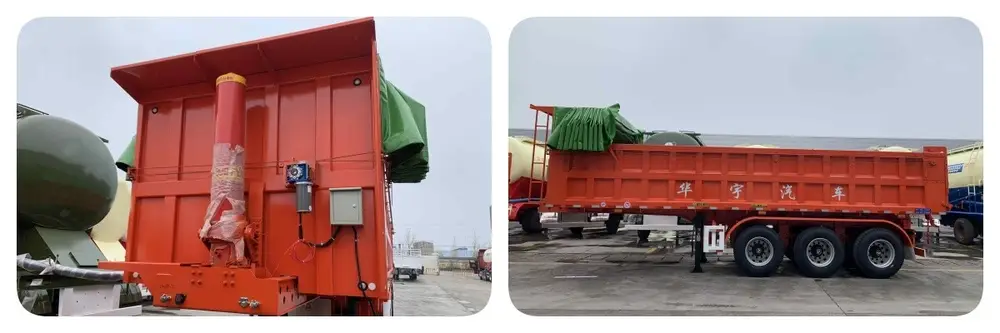

HUAYU 3 axle rear dump trailer JOST landing gear
JOST Landing Gear and Component Quality
This HUAYU 3 axle rear dump trailer is equipped with JOST 28T landing gear for stable support during tipping and coupling operations. The 90# JOST traction pin and BPW axles are standard fitment, giving operators proven components with wide parts availability across African and Middle Eastern markets. The ABS brake system adds a layer of safety on loaded downhill runs and emergency stops.
The Q345B high-strength steel main beam and body construction handle the repeated tipping stress cycles that dump trailers face daily. Heavy duty mechanical suspension soaks up the road impacts that would fatigue lighter suspension setups on unpaved mine and quarry access roads. The HYVA 202 hydraulic oil cylinder lifts the 40-cbm square dump body smoothly and returns it under gravity, with enough force to tip at full 60-ton load.
| Parameter | Value |
|---|---|
| Dimensions | 10.5m x 2.5m x 3.5m (outside) or Customized |
| Hydraulic Cylinder | 202 hydraulic oil cylinder, HYVA brand |
| Load Capacity | 40 ton - 60 ton |
| Volume | 40 cbm |
| Axle | BPW |
| Body Material | Q345B High tension carbon steel |
| Suspension | Heavy duty type Mechanical Suspension |
| Traction Pin | 90# JOST |
| Landing Gear | JOST 28T lifting capacity |
| Brake System | ABS System |
| Main Beam | Q345B high strength steel |
| Accessories | One standard tool box and spare tire carriers |
We run a construction materials fleet in East Java and added this HUAYU square-body rear dump about seven months ago. The build quality has been consistently good — the box stays square and true, the rear door mechanism works every cycle, and the hydraulic lift feels powerful even at full weight. Our routes include broken village roads and the trailer has taken them without any cracks or loose parts. Drivers prefer it over the older unit we had. For material haulage companies in Indonesia that need a rear dump they can rely on daily, I recommend this trailer fully.
2026-05-30
We carry gravel and sand around the Oromia region. This square body tipper is strong, tips cleanly, and takes the rough quarry roads well. Their sales staff helped us pick the right box volume. Very good trailer.
2026-05-19
