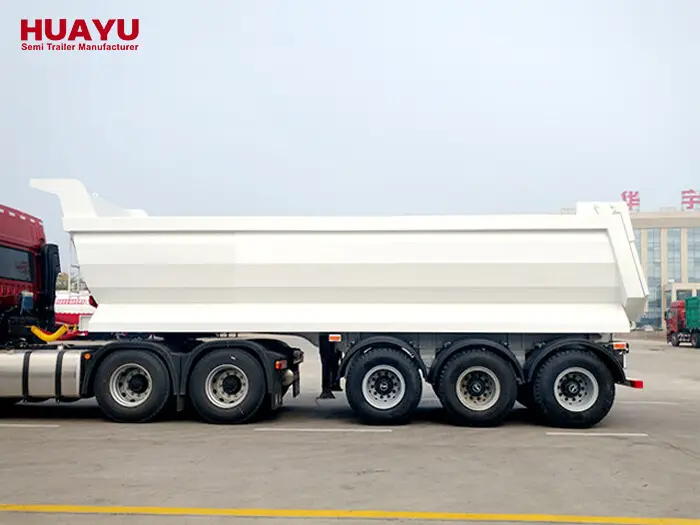

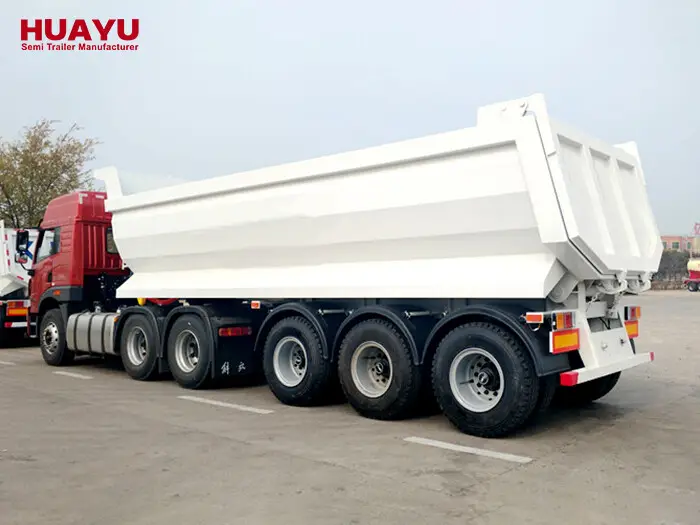

3 Axle End Tipper Semi Trailer
Tipper Trailer$20,000.00
HUAYU 3 axle end tipper semi trailer with HYVA hydraulic system for transporting sand, ore, stone, and bulk construction materials.
The HUAYU 3 axle end tipper semi trailer runs on a HYVA hydraulic cylinder with FUWA brand axles. The floor and side panels are built thicker than standard specification — customized in our production facility for African road conditions where bumpy surfaces put repeated stress on the dump body. That extra thickness in the panels prevents the premature cracking and rivet failure that thinner dump boxes develop after a few months on rough roads, and it greatly improves the durability of this tipper semi trailer for long-term operation.

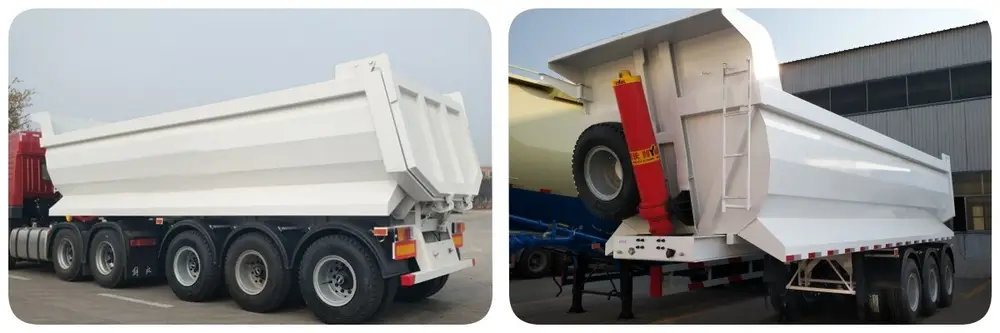

3 axle end tipper semi trailer detail
Road Transport Applications
This 3 axle end tipper semi trailer handles the transport of loose goods — sand, soil, coal, gravel, and crushed stone — on public road networks. The Q345B main beam with 14mm upper flange, 10mm middle web, and 16mm lower flange gives the chassis enough stiffness to carry 30 to 60 tons without the beam deflection that causes tailgate alignment problems and dump angle inconsistencies.
Loading capacity ranges from 30T to 60T in weight, or 24 to 45 cubic meters in volume. That range covers most standard dump runs for road construction, building material supply, and mining site haulage. Axle options from 13T to 20T in BPW or FUWA brands let operators match the axle rating to their typical load and road weight regulations.

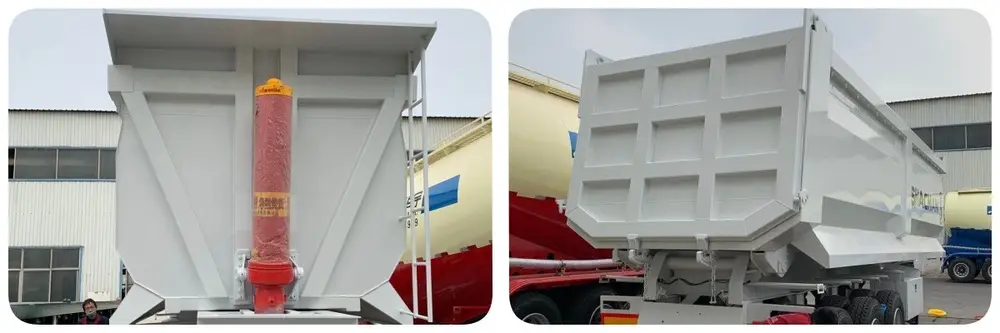

3 axle end tipper semi trailer hydraulic system
The HYVA or Dong Fang Hong hydraulic system lifts the dump body to the correct tipping angle, and the 28-ton double-speed landing gear keeps the trailer stable during both tipping operations and coupling to the tractor unit.
| Parameter | Value |
|---|---|
| Dimensions | 10900mm x 2500mm x 3600mm |
| Loading Capacity | 30T, 40T, 45T, 50T, 60T |
| Volume | 24m3, 25m3, 30m3, 40m3, 45m3 |
| Tire | 12R22.5, 11.00R20, 12.00R20, 315/80R22.5 |
| Material | Main beams Q345B, upper flange 14mm, middle 10mm, down 16mm |
| Axles | 13T / 16T / 20T BPW or FUWA |
| King Pin | 2 inch or 3.5 inch |
| Landing Gears | 28 ton, double speeds |
| Suspension | Spring Suspension or Air Suspension |
| Hydraulic System | Dong Fang Hong brand or HYVA brand |
We use this 3 axle tipper for sand and gravel transport on construction sites around Abuja. The thicker side panels are holding up much better than our previous tipper. HYVA hydraulic system dumps fast and the FUWA axles have been maintenance-free for ten months.
2025-08-12
Good tipper semi trailer for the price. The 45 cubic meter capacity fits our coal transport requirements. Q345B main beam is stiff and the dump angle is consistent load after load. We chose BPW axles for the longer service intervals. Delivery was three weeks.
2025-03-27
This 3 axle end tipper handles our mining operation's daily ore runs. The floor thickness is noticeably heavier than other Chinese tippers we compared. After six months on rough mine roads, the dump body shows no cracking. Dong Fang Hong hydraulic works reliably.
2025-05-19
We run two of these tippers on a road construction project. The 60-ton rating gives us capacity for heavy aggregate loads. Double-speed landing gear is stable during tipping. The HUAYU build quality is good — welds are clean and the paint has held up in tropical weather.
2025-07-08
Reliable tipper trailer for sand and gravel. The 3 axle setup distributes weight well on our road network. Spring suspension handles rough roads without excessive bounce. Would prefer if the tailgate seal was tighter but overall a solid purchase.
2025-11-30
